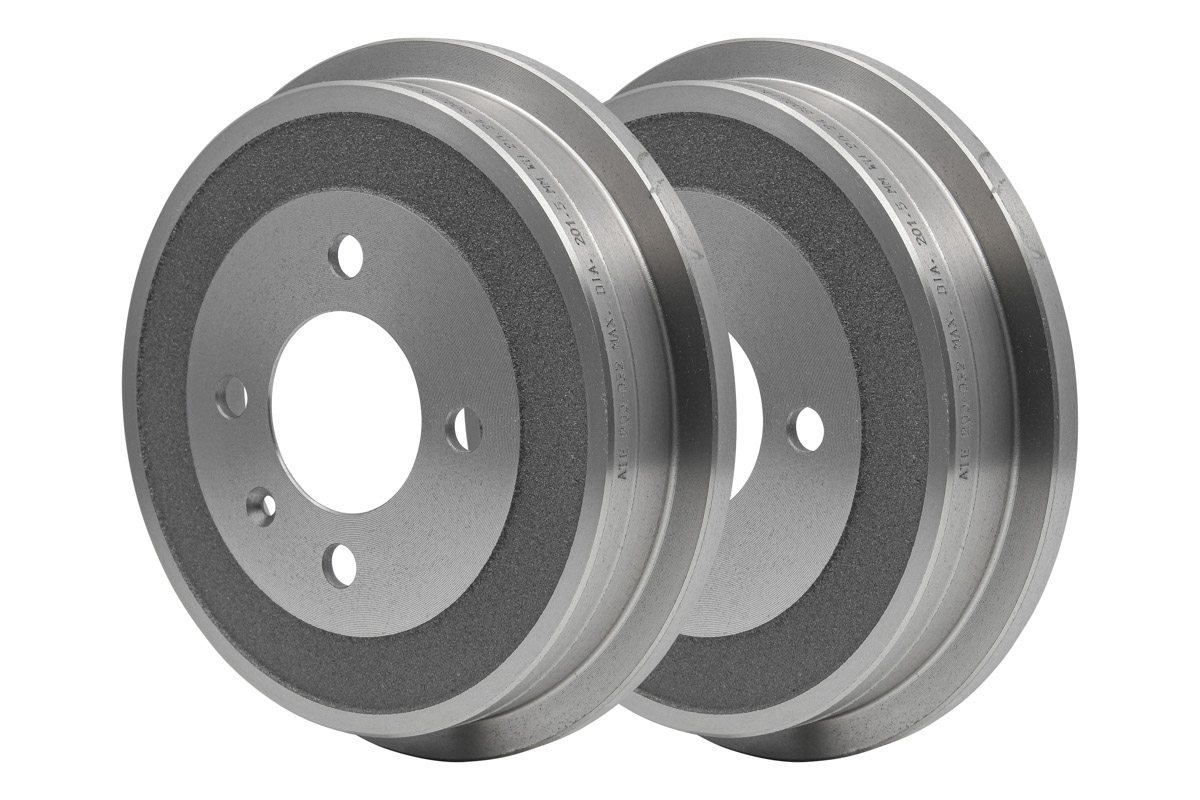

Tamburo freno ATE 480130
ATE
ATE

Tamburo freno

Codice 480130 · EAN 4006633076036

33,65 €

IVA inclusa

Verifica la compatibilità scegliendo la tua auto, oppure indica targa o telaio nell'ordine: controlliamo prima di spedire.
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

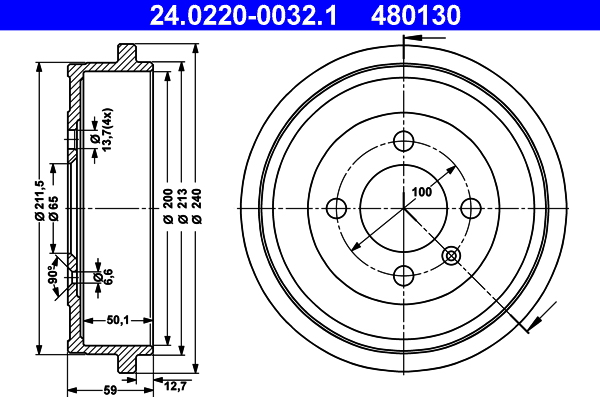

Caratteristiche

Diam. Interno Tamburo Freno [Mm]
200,0
Misura Mass. Scorrim. Tamburo Freno [Mm]
201,5
Altezza Interna Tamb. Freno [Mm]
50,1
N° Fori
4
Foro Interno-Ø [Mm]
100,0
Alesaggio-Ø [Mm]
13,7
Altezza Totale Tamb. Freno [Mm]
59,0
Diam. Tamburo Freno Esterno [Mm]
240,0
Diametro Sede [Mm]
65,0
Marchio Controllo
E1 90R-02D0324/1877

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

107 versioni di 16 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

SEAT43 versioni
AROSA (6H1)5
  • 1.0 37 kW · 50 CV1997–2004ANV, ALD, ALL, AUC, AER
  • 1.0 37 kW · 50 CV1998–2001AHT
  • 1.4 44 kW · 60 CV1997–2004AKV, APQ, AKK, ANW, AUD, AEX
  • 1.4 TDI 55 kW · 75 CV2000–2004AMF
  • 1.7 SDI 44 kW · 60 CV1997–2004AKU
CORDOBA (6K1, 6K2)16
  • 1.0 51 kW · 69 CV2001–2002AVZ, AST
  • 1.0 i 37 kW · 50 CV1996–2002ANV, ALD, AUC, AER
  • 1.4 40 kW · 54 CV1997–1999ANX
  • 1.4 16V 55 kW · 75 CV2000–2002APE, AUA
  • 1.4 i 44 kW · 60 CV1994–2002AKV, APQ, AKK, ABD, ANW, AUD, AEX
  • 1.4 i 16V 74 kW · 101 CV1996–2002AQQ, AUB, AFH
  • 1.6 i 55 kW · 75 CV1993–2002ABU, AEE, ALM
  • 1.6 i 55 kW · 75 CV1994–19991F
  • 1.6 i 74 kW · 101 CV1996–2002AFT, APF, AEH, AUR
  • 1.8 i 66 kW · 90 CV1993–2002ACC, ABS, ADZ
  • 1.9 D 50 kW · 68 CV1993–19961Y
  • 1.9 D 47 kW · 64 CV1996–19961Y
  • 1.9 SDI 47 kW · 64 CV1996–1999AEY
  • 1.9 SDI 50 kW · 68 CV1999–2002AQM, AGP
  • 1.9 TD 55 kW · 75 CV1993–1996AAZ
  • 1.9 TDI 66 kW · 90 CV1996–20021Z, AHU, ALH, AGR
CORDOBA Vario (6K5)9
  • 1.4 74 kW · 101 CV2000–2000AQQ
  • 1.4 16V 55 kW · 75 CV1999–2002APE, AUA
  • 1.4 i 44 kW · 60 CV1996–2002AKV, APQ, AKK, ANW, AUD, AEX
  • 1.6 i 74 kW · 101 CV1996–2002AFT, APF, AEH, AUR, AKL
  • 1.6 i 55 kW · 75 CV1996–2002ABU, AEE, ALM
  • 1.6 i 55 kW · 75 CV1997–19991F
  • 1.9 SDI 47 kW · 64 CV1996–1999AEY
  • 1.9 SDI 50 kW · 68 CV1999–2002AQM, AGP
  • 1.9 TDI 66 kW · 90 CV1996–20021Z, AHU, ALH, AGR
IBIZA II (6K1)9
  • 1.0 16V 51 kW · 69 CV1999–2002AVZ, AST
  • 1.0 i 37 kW · 50 CV1996–2002ANV, ALD, AUC, AER
  • 1.4 16V 55 kW · 75 CV2000–2002APE, AUA
  • 1.4 i 44 kW · 60 CV1993–2002AKV, APQ, AKK, ABD, ANW, AUD, AEX
  • 1.4 i 16V 74 kW · 101 CV1997–2002AQQ, AUB, AFH
  • 1.6 i 55 kW · 75 CV1993–2002ABU, AEE, ALM
  • 1.6 i 74 kW · 101 CV1996–2002AFT, APF, AEH, AUR, AKL
  • 1.9 SDI 50 kW · 68 CV1999–2002AQM, AGP
  • 1.9 TDI 66 kW · 90 CV1996–2002AHU, ALH, AGR, 1Z
Mii (KF1, KE1)4
  • 1.0 44 kW · 60 CV2011–2019CHYA
  • 1.0 55 kW · 75 CV2011–2019CHYB
  • 1.0 EcoFuel 50 kW · 68 CV2012–2019CPGA
  • electric 61 kW · 83 CV2020–oggiEBMA
SKODA4 versioni
CITIGO (NF1)3
  • 1.0 44 kW · 60 CV2011–2019CHYA
  • 1.0 55 kW · 75 CV2011–2019CHYB
  • 1.0 CNG 50 kW · 68 CV2012–2019CPGA
E-CITIGO (NE1)1
  • e iV 61 kW · 83 CV2019–2021EBMA
VOLKSWAGEN60 versioni
LOAD UP! (121, 122, BL1, BL2)3
  • 1.0 44 kW · 60 CV2012–2019CHYA, DAFA
  • 1.0 EcoFuel 50 kW · 68 CV2012–2020CPGA
  • e-Load Up 60 kW · 82 CV2014–2019EABA
LUPO I (6X1, 6E1)6
  • 1.0 37 kW · 50 CV1998–2005ALL, AUC, ALD, ANV, AER
  • 1.0 37 kW · 50 CV1998–2000AHT
  • 1.4 44 kW · 60 CV2000–2005AUD
  • 1.4 16V 55 kW · 75 CV1998–2005AUA, APE, AHW, AKQ, BBY
  • 1.4 TDI 55 kW · 75 CV1999–2005AMF
  • 1.7 SDI 44 kW · 60 CV1998–2005AKU
POLO (6N2)9
  • 1.0 37 kW · 50 CV1999–2001AUC, ALD
  • 1.4 44 kW · 60 CV1999–2001AKK, AUD
  • 1.4 40 kW · 54 CV1999–2001AKP, ANX
  • 1.4 16V 55 kW · 75 CV1999–2001AUA, APE, AHW
  • 1.4 16V 74 kW · 101 CV1999–2001AFK, AUB, AQQ
  • 1.4 TDI 55 kW · 75 CV1999–2001AMF
  • 1.7 SDI 44 kW · 60 CV1999–2001AKU
  • 1.9 D 47 kW · 64 CV1999–2001AEF
  • 1.9 SDI 47 kW · 64 CV1999–2001ASX, AGD
POLO Furgone/familiare (6V5)3
  • 1.4 44 kW · 60 CV1997–1999AEX
  • 1.4 55 kW · 75 CV2000–2001AUA
  • 1.7 SDI 44 kW · 60 CV1997–1999AKU
POLO Furgone/hatchback (6N1)1
  • 1.0 33 kW · 45 CV1994–1999AEV
POLO III (6N1)10
  • 1.7 SDI 42 kW · 57 CV1997–1999AHG
  • 100 1.4 16V 74 kW · 100 CV1996–1999AFH
  • 45 1.0 33 kW · 45 CV1994–1996AEV
  • 50 1.0 37 kW · 50 CV1996–1999ALL, AER
  • 55 1.3 40 kW · 55 CV1994–1997ADX
  • 55 1.4 40 kW · 55 CV1995–1999AEX, ANX
  • 60 1.4 44 kW · 60 CV1995–1999AEX, AKV, APQ
  • 60 1.7 SDI 44 kW · 60 CV1997–1999AKU
  • 64 1.9 D 47 kW · 64 CV1994–1999AEF
  • 64 1.9 SDI 47 kW · 64 CV1996–1999AGD
POLO III CLASSIC (6V2)11
  • 1.6 74 kW · 101 CV2002–2006BAH
  • 1.9 SDI 48 kW · 65 CV1996–2001AEY
  • 100 1.6 74 kW · 100 CV1995–2001APF, AEH, AKL, AUR, AFT
  • 57 1.7 SDI 42 kW · 57 CV1997–2001AKW
  • 60 1.4 44 kW · 60 CV1995–2001ANW, AEX, AKV, AKK, AUD, APQ
  • 64 1,9 D 47 kW · 64 CV1996–19961Y
  • 68 1.9 SDI 50 kW · 68 CV1999–2002AQM, AGP
  • 75 1.4 16V 55 kW · 75 CV1999–2001AUA, APE
  • 75 1.6 55 kW · 75 CV1995–2001AEE, ALM
  • 90 1.8 66 kW · 90 CV1997–2001ADD
  • 90 1.9 TDI 66 kW · 90 CV1996–2001AGR, ALE, AHU, ALH
POLO Variant (6V5)9
  • 1.4 44 kW · 60 CV1997–2001ANW, AEX, AKV, AKK, AUD, APQ
  • 1.4 16V 55 kW · 75 CV1999–2001AUA, APE
  • 1.6 55 kW · 75 CV1997–2001AEE, ALM
  • 1.6 74 kW · 101 CV1997–2001APF, AEH, AKL, AUR, AFT
  • 1.7 SDI 42 kW · 57 CV1997–2001AKW
  • 1.8 66 kW · 90 CV1997–2001ADZ
  • 1.9 SDI 47 kW · 64 CV1997–2001AEY
  • 1.9 SDI 50 kW · 68 CV1999–2001AQM, AGP
  • 1.9 TDI 66 kW · 90 CV1997–2001AGR, ALE, AHU, ALH
UP! (121, 122, BL1, BL2, BL3, 123)8
  • 1.0 44 kW · 60 CV2011–2020CHYE, DAFA, CHYA
  • 1.0 55 kW · 75 CV2011–2019CHYB
  • 1.0 48 kW · 65 CV2020–2023DSGC
  • 1.0 EcoFuel 50 kW · 68 CV2012–2023CPGA
  • 1.0 GTI 85 kW · 115 CV2017–2023DKRA
  • 1.0 TSI 66 kW · 90 CV2016–2019CHZA, DKLC
  • e-Up 60 kW · 82 CV2013–2019EABA
  • e-Up 61 kW · 83 CV2019–oggiEBMA
