ATE

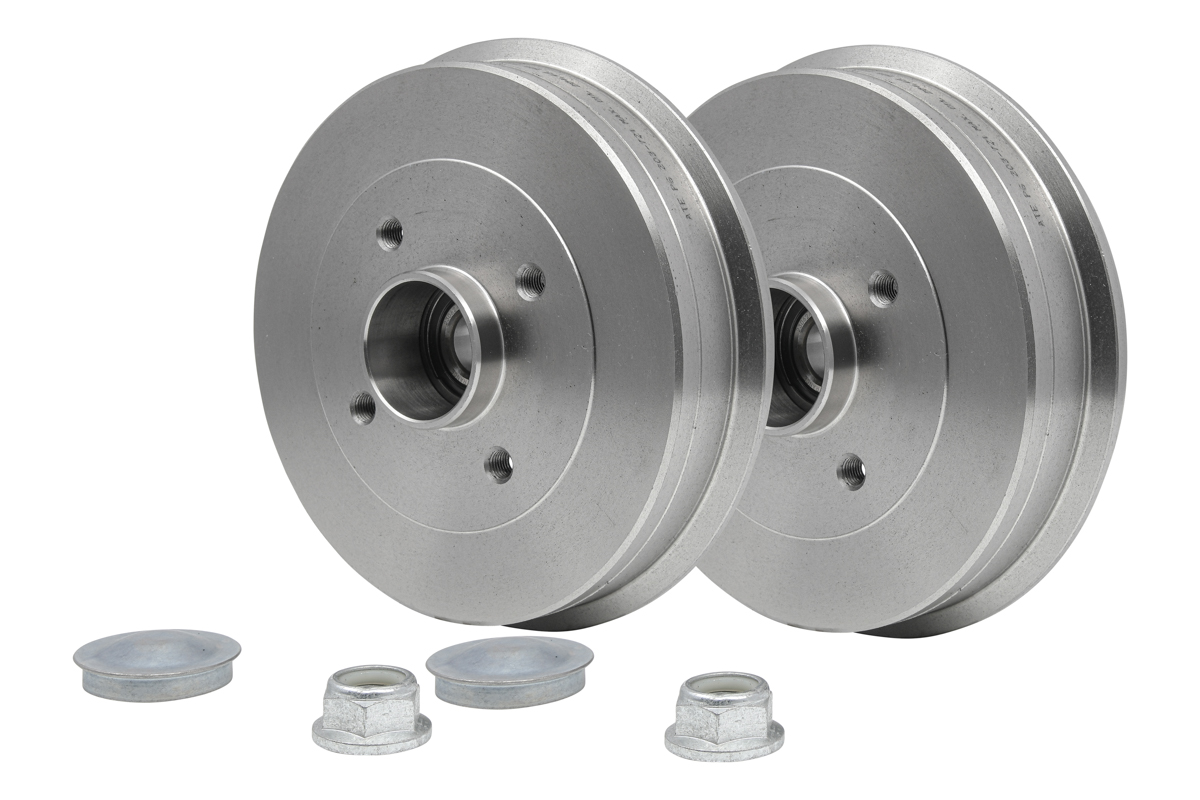

Tamburo freno

Codice 480213 · EAN 4006633310918

123,04 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua BMW 5 (E60) 530 d xDrive. Vedi i ricambi per la tua auto · auto compatibili

Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

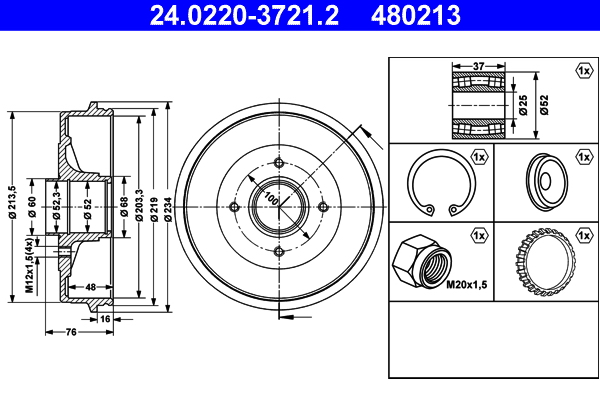

Caratteristiche

Articolo Complementare/Info Integrativa 2: CON CUSCINETTO RUOTACON ANELLO SENSORE ABS
Diam. Interno Tamburo Freno [Mm]: 203,0
Misura Mass. Scorrim. Tamburo Freno [Mm]: 204,5
Altezza Interna Tamb. Freno [Mm]: 48,0
N° Fori: 4
Foro Interno-Ø [Mm]: 100,0
Dimensioni Filettatura: M12X1,5
Altezza Totale Tamb. Freno [Mm]: 76,0
Diam. Tamburo Freno Esterno [Mm]: 234,0
Diametro Sede [Mm]: 52,0
Diametro Interno 2 [Mm]: 52,3
Marchio Controllo: E1 90R-02D0955/0095

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

121 versioni di 14 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

Cerca la tua auto

DACIA10 versioni

LOGAN (LS_)10

1.4 MPI LPG (LS0C) 55 kW · 75 CV2006–2012K7J 714, K7J 710
1.5 dCi (LS04) 65 kW · 88 CV2010–oggiK9K 892
1.5 dCi (LS0J, LS0Y) 48 kW · 65 CV2005–oggiK9K 790
1.5 dCi (LS0K) 50 kW · 68 CV2006–2012K9K 792
1.5 dCi (LS0W) 63 kW · 86 CV2007–2011K9K 796
1.6 (LS0B, LS0D, LS0F, LS0H) 64 kW · 87 CV2004–oggiK7M 710, K7M 718
1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,... 77 kW · 105 CV2006–oggiK4M 697, K4M 698, K4M 694, K4M 690, K4M 696
1.6 Bifuel 62 kW · 84 CV2010–oggiK7M 718
1.6 LPG 64 kW · 87 CV2004–2011K7M 718
1.6 MPI 85 62 kW · 84 CV2010–oggiK7M 800

RENAULT111 versioni

CLIO II (BB_, CB_)17

1.0 40 kW · 54 CV2000–2001D7D 760
1.2 (BB0A, BB0F, BB10, BB1K, BB28, BB2D, BB2H, CB0A,... 43 kW · 58 CV1998–2010D7F 744, D7F 746, D7F 722, D7F 766, D7F 764, D7F 710, D7F 720, D7F 726
1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,... 55 kW · 75 CV2001–2016D4F 706, D4F 728, D4F 722, D4F 712, D4F 714
1.2 LPG 43 kW · 58 CV1998–2009D7F 766, D7F 764
1.2 LPG (BB0A, CB0A) 44 kW · 60 CV1999–2001D7F 722
1.4 (B/CB0C, B/CB0S) 55 kW · 75 CV1998–2005E7J 780, E7J 634, E7J 635, K7J 700
1.4 16V (B/CB0L) 70 kW · 95 CV1999–2004K4J 712, K4J 713
1.4 16V (B/CB0P, BB13) 72 kW · 98 CV2000–2008K4J 711, K4J 710, K4J 712, K4J 713, K4J 715
1.5 dCi 42 kW · 57 CV2001–2006K9K 704
1.5 dCi (B/CB03) 59 kW · 80 CV2001–2003K9K 702
1.5 dCi (B/CB07) 48 kW · 65 CV2001–2009K9K 704, K9K 700
1.5 dCi (B/CB08) 60 kW · 82 CV2001–2005K9K 702
1.6 (B/CB0D, BB00) 66 kW · 90 CV1998–2005K7M 746, K7M 744, K7M 745
1.6 16V (BB01, BB0H, BB0T, BB14, BB1D, BB1R, BB2KL, BB3G... 79 kW · 107 CV1998–2005K4M 742, K4M 743, K4M 708, K4M 744, K4M 745, K4M 740, K4M 748
1.9 D (B/CB0E, BB0J) 47 kW · 64 CV1998–2005F8Q 632, F8Q 630
1.9 D (B/CB0J) 48 kW · 65 CV2000–2001F8Q 632, F8Q 630
1.9 dTi (B/CB0U) 59 kW · 80 CV1999–2005F9Q 780, F9Q 782

CLIO II Furgone/hatchback (SB0/1/2_)9

1.2 (SB0A, SB0F, SB1K, SB2D) 43 kW · 58 CV1998–oggiD7F 746, D7F 720, D7F 726
1.5 dCi 59 kW · 80 CV2001–2004K9K 702
1.5 dCi 60 kW · 82 CV2003–oggiK9K 710, K9K 716, K9K 702
1.5 dCi 50 kW · 68 CV2004–oggiK9K 714
1.5 dCi (SB07) 48 kW · 65 CV2001–oggiK9K 704, K9K 700
1.9 D (SB0E) 47 kW · 64 CV1998–oggiF8Q 630
1.9 D (SB0J) 48 kW · 65 CV2000–2001F8Q 632
1.9 D (SB0R) 40 kW · 54 CV1999–2000F8Q 662
1.9 DTi (SB0U) 59 kW · 80 CV2000–2001F9Q 780

LOGAN I (LS_)6

1.4 55 kW · 75 CV2004–oggiK7J 710
1.5 dCi 48 kW · 65 CV2006–2013K9K 794, K9K 700, K9K 790
1.5 dCi 50 kW · 68 CV2007–oggiK9K 792
1.5 dCi 63 kW · 86 CV2008–2015K9K 796
1.6 64 kW · 87 CV2004–oggiK7M 710
1.6 (LS0L, LS09, LS0V, LS0P, LS18, LS1S, LS1V, LS1Y,... 77 kW · 105 CV2007–2013K4M 697, K4M 694, K4M 698, K4M 696, K4M 690

LOGAN I Familiare (KS_)6

1.4 55 kW · 75 CV2007–oggiK7J 710
1.5 dCi 50 kW · 68 CV2007–oggiK9K 792
1.5 dCi 63 kW · 86 CV2008–2015K9K 796
1.5 dCi (KS04, KS1L) 66 kW · 90 CV2011–2015K9K 892
1.6 64 kW · 87 CV2007–oggiK7M 710
1.6 (KS0L, KS0M, KS0P, KS1S) 77 kW · 105 CV2007–oggiK4M 697, K4M 696, K4M 690

MEGANE I (BA0/1_)22

1.4 16V (BA0D, BA1H, BA0W, BA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.4 Eco (BA0T) 52 kW · 71 CV1996–1999E7J 624
1.4 e (BA0E, BA0V) 55 kW · 75 CV1996–2003E7J 764, E7J 626
1.6 16V 81 kW · 110 CV2001–2008K4M 700
1.6 16V (BA04, BA0B, BA11, BA1J, BA16, BA19, BA1K, BA1V,... 79 kW · 107 CV1999–2002K4M 708, K4M 706, K4M 704, K4M 709, K4M 700, K4M 701
1.6 LPG 66 kW · 90 CV1995–1999K7M 702
1.6 LPG 80 kW · 109 CV2000–2002K4M 704, K4M 712
1.6 e (BA0F, BA0S) 66 kW · 90 CV1996–1999K7M 702, K7M 703, K7M 790
1.6 i (BA0L) 55 kW · 75 CV1996–1999K7M 720
1.8 16V (BA06, BA12, BA1A, BA1M, BA1R) 85 kW · 115 CV2001–2003F4P 720, F4P 722
1.9 D 69 kW · 94 CV1996–2001F8Q 784
1.9 D Eco (BA0A, BA0U, BA0R) 47 kW · 64 CV1996–2003F8Q 620, F8Q 622, F8Q 624
1.9 DCi 77 kW · 105 CV1999–2003F9Q 738, F9Q 732
1.9 TDI 69 kW · 94 CV1996–2003F8Q 786, F8Q 784
1.9 dCi (BA05, BA1F) 75 kW · 102 CV2001–2003F9Q 732, F9Q 733
1.9 dT 76 kW · 104 CV1998–1999F8Q 784
1.9 dT (B/SA0K, B/SA0Y) 66 kW · 90 CV1996–2003F8Q 786, F8Q 784
1.9 dTi (BA08, BA0N) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 730, F9Q 734
1.9 dTi (BA1U) 59 kW · 80 CV2001–2003F9Q 744
2.0 85 kW · 115 CV1998–2001F3R 750, F3R 797, F3R 798, F3R 751, F3R 791, F3R 796
2.0 i 80 kW · 109 CV1999–2003F3R 750, F3R 751
2.0 i (BA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 751

MEGANE I Cabriolet (EA0/1_)5

1.4 16V (EA0D, EA1H, EA0W, EA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.6 16V (EA04, EA0B, EA11, EA1J) 79 kW · 107 CV1999–2003K4M 708, K4M 709, K4M 700, K4M 701
1.6 e (EA0F) 66 kW · 90 CV1996–1999K7M 702, K7M 703
2.0 (EA0G) 84 kW · 114 CV1997–2003F3R 750, F3R 798
2.0 i (EA0G) 80 kW · 109 CV1999–2003F3R 791, F3R 796

MEGANE I Classic (LA0/1_)18

1.4 (LA0E, LA0V) 55 kW · 75 CV1996–2003E7J 764, E7J 626
1.4 16V (LA0D, LA1H, lA0W, LA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.6 64 kW · 87 CV2000–2000K7M 704
1.6 16V 81 kW · 110 CV1999–2001
1.6 16V (LA00, LA04, LA0B, LA11, LA16, LA19, LA1J, LA1K,... 79 kW · 107 CV1999–2003K4M 708, K4M 706, K4M 709, K4M 700, K4M 701
1.6 e (LA0F, LA0S) 66 kW · 90 CV1996–1999K7M 702, K7M 703, K7M 790
1.6 i (LA0L) 55 kW · 75 CV1996–1999K7M 720
1.8 16V (LA06, LA12, LA1A, LA1M, LA1R) 85 kW · 115 CV2001–2003F4P 720, F4P 722
1.9 D (LA0A, LA0U, LA0R) 47 kW · 64 CV1996–2003F8Q 620, F8Q 622, F8Q 624
1.9 dCi (LA05) 77 kW · 105 CV1999–2003F9Q 732, F9Q 733
1.9 dCi (LA05, LA1F) 75 kW · 102 CV2001–2003F9Q 738, F9Q 732, F9Q 733
1.9 dT 76 kW · 104 CV1998–1999F8Q 784
1.9 dT (LA0K, LA0Y) 66 kW · 90 CV1996–2003F8Q 786, F8Q 784
1.9 dTi (LA08, LA0N, LA0K) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 730, F9Q 734
1.9 dTi (LA1U) 59 kW · 80 CV2001–2003F9Q 744
2.0 85 kW · 115 CV1998–2001F3R 750, F3R 797, F3R 798, F3R 752, F3R 791, F3R 796
2.0 RT 112 kW · 152 CV1996–1999
2.0 i (LA07, LA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 797, F3R 798, F3R 752, F3R 751, F3R 791, F3R 796

MEGANE I Coach (DA0/1_)7

1.4 16V (DA0D, DA1H, DA0W, DA10) 70 kW · 95 CV1999–2003K4J 700, K4J 714, K4J 750
1.6 16V (DA0B, DA04, DA11) 79 kW · 107 CV1999–2003K4M 708, K4M 709, K4M 700, K4M 701
1.6 e (DA0F) 66 kW · 90 CV1996–1999K7M 702, K7M 703
1.9 dCi (DA05, DA1F) 75 kW · 102 CV2001–2003F9Q 732, F9Q 733
1.9 dTi (DA0N) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 734
2.0 i 80 kW · 109 CV1999–2003F3R 750, F3R 797, F3R 798, F3R 751, F3R 791, F3R 796
2.0 i (DA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 798, F3R 751

MEGANE I Hatchback Van (SA0/1_)2

1.9 (SA0U, SA0R, SA0A) 47 kW · 64 CV1995–2000F8Q 620, F8Q 622, F8Q 624
1.9 dCi 59 kW · 80 CV2000–2003F9Q 738, F9Q 744

THALIA I (LB_)10

1.2 16V 55 kW · 75 CV2002–2009D4F 728
1.4 55 kW · 75 CV2000–2005K7J 700
1.4 16V 72 kW · 98 CV2000–2009K4J 712
1.5 dCi 60 kW · 82 CV2001–2009K9K 706
1.5 dCi 62 kW · 84 CV2001–2009K9K 718
1.5 dCi 48 kW · 65 CV2002–2009K9K 700
1.6 66 kW · 90 CV1998–2008K7M 746
1.6 82 kW · 112 CV2004–2008K4M 736
1.6 16V 79 kW · 107 CV2000–2009K4M 740
1.9 D 48 kW · 65 CV1998–2001F8Q 630

THALIA II (LU_)7

1.4 72 kW · 98 CV2009–2011K4J 712
1.5 dCi 62 kW · 85 CV2008–2012K9K 718
1.5 dCi 47 kW · 64 CV2008–2014K9K 740
1.5 dCi 48 kW · 65 CV2009–2014K9K 700
1.5 dCi 66 kW · 90 CV2009–2012K9K 834
1.6 16V 77 kW · 105 CV2008–2013K4M 743
1.6 16V (LU1A, LU1B, LU1D, LU2M) 79 kW · 107 CV2009–2014K4M 744, K4M 745

TWINGO I (C06_)1

1.2 16V (C06C, C06D, C06K) 55 kW · 75 CV2001–2007D4F 702

TWINGO I Furgone/hatchback (S06_)1

1.2 55 kW · 75 CV2001–2012D4F 702
