ATE

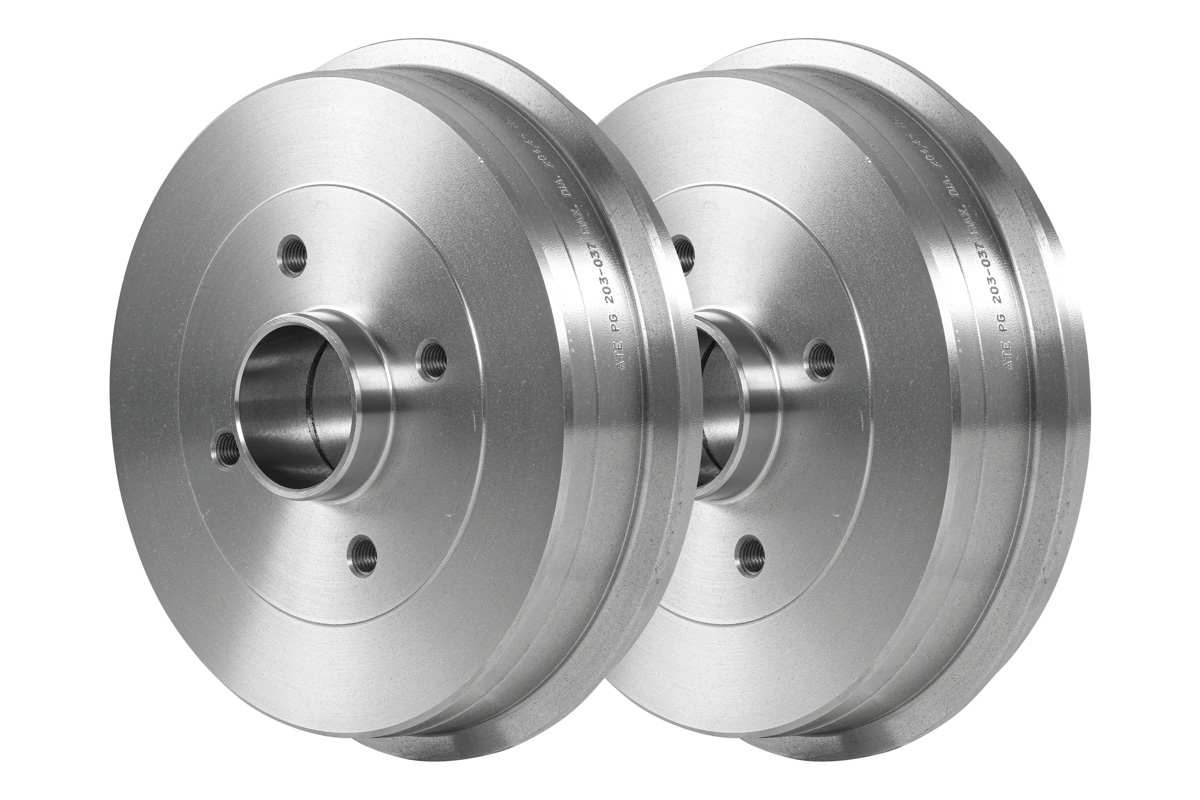

Tamburo freno

Codice 480308 · EAN 4006633378574

59,86 €

IVA inclusa

Verifica la compatibilità scegliendo la tua auto, oppure indica targa o telaio nell'ordine: controlliamo prima di spedire.

Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

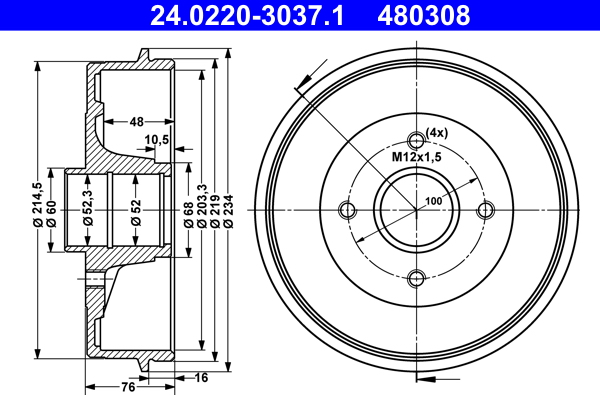

Caratteristiche

Articolo Complementare/Info Integrativa 2: SENZA CUSCINETTO RUOTASENZA ANELLO SENSORE ABS
Diam. Interno Tamburo Freno [Mm]: 203,0
Misura Mass. Scorrim. Tamburo Freno [Mm]: 204,5
Altezza Interna Tamb. Freno [Mm]: 48,0
Diametro Sede [Mm]: 52,0
N° Fori: 4
Foro Interno-Ø [Mm]: 100,0
Dimensioni Filettatura: M12X1,5
Altezza Totale Tamb. Freno [Mm]: 76,0
Diam. Tamburo Freno Esterno [Mm]: 234,0
Marchio Controllo: E1 90R-02D0955/0095

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Cerca un codice originale

Auto compatibili

164 versioni di 22 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

Cerca la tua auto

DACIA10 versioni

LOGAN (LS_)10

1.4 MPI LPG (LS0C) 55 kW · 75 CV2006–2012K7J 714, K7J 710
1.5 dCi (LS04) 65 kW · 88 CV2010–oggiK9K 892
1.5 dCi (LS0J, LS0Y) 48 kW · 65 CV2005–oggiK9K 790
1.5 dCi (LS0K) 50 kW · 68 CV2006–2012K9K 792
1.5 dCi (LS0W) 63 kW · 86 CV2007–2011K9K 796
1.6 (LS0B, LS0D, LS0F, LS0H) 64 kW · 87 CV2004–oggiK7M 710, K7M 718
1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,... 77 kW · 105 CV2006–oggiK4M 697, K4M 698, K4M 694, K4M 690, K4M 696
1.6 Bifuel 62 kW · 84 CV2010–oggiK7M 718
1.6 LPG 64 kW · 87 CV2004–2011K7M 718
1.6 MPI 85 62 kW · 84 CV2010–oggiK7M 800

RENAULT154 versioni

19 I Chamade (L53_)1

1.7 (L53F) 79 kW · 107 CV1988–1992F3N 746

19 II (B/C53_)3

1.8 (5/353F, B/C538) 79 kW · 107 CV1994–1995F3P 765, F3P 682
1.8 (B/C538) 81 kW · 110 CV1992–1994F3P 700
1.9 dT (B/C53T) 66 kW · 90 CV1992–1995F8Q 744

19 II Cabriolet (D53_, 853_)1

1.8 (D53V, 853F, D53C) 79 kW · 107 CV1994–1996F3P 764, F3P 765, F3P 682

19 II Chamade (L53_)5

1.8 79 kW · 107 CV1992–1995F3P 706, F3P 700
1.8 (453A/F) 66 kW · 90 CV1992–1995F3P 706, F3P 760
1.8 (L53V, L538) 79 kW · 107 CV1994–1995F3P 682
1.9 D (L53J) 47 kW · 64 CV1992–1997F8Q 742
1.9 dT (L53T) 66 kW · 90 CV1992–1995F8Q 744

19 II Furgone/hatchback (S53_)1

1.9 dT 68 kW · 92 CV1992–1995F8Q 740

CLIO II (BB_, CB_)22

1.0 40 kW · 54 CV2000–2001D7D 760
1.2 (BB0A, BB0F, BB10, BB1K, BB28, BB2D, BB2H, CB0A,... 43 kW · 58 CV1998–2010D7F 744, D7F 746, D7F 722, D7F 766, D7F 764, D7F 710, D7F 720, D7F 726
1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,... 55 kW · 75 CV2001–2016D4F 706, D4F 728, D4F 722, D4F 712, D4F 714
1.2 LPG 43 kW · 58 CV1998–2009D7F 766, D7F 764
1.2 LPG (BB0A, CB0A) 44 kW · 60 CV1999–2001D7F 722
1.4 (B/CB0C, B/CB0S) 55 kW · 75 CV1998–2005E7J 780, E7J 634, E7J 635, K7J 700
1.4 16V (B/CB0L) 70 kW · 95 CV1999–2004K4J 712, K4J 713
1.4 16V (B/CB0P, BB13) 72 kW · 98 CV2000–2008K4J 711, K4J 710, K4J 712, K4J 713, K4J 715
1.5 dCi 42 kW · 57 CV2001–2006K9K 704
1.5 dCi 74 kW · 100 CV2003–2005K9K 712
1.5 dCi (B/C2J) 50 kW · 68 CV2004–2012K9K 714
1.5 dCi (B/CB03) 59 kW · 80 CV2001–2003K9K 702
1.5 dCi (B/CB07) 48 kW · 65 CV2001–2009K9K 704, K9K 700
1.5 dCi (B/CB08) 60 kW · 82 CV2001–2005K9K 702
1.5 dCi (B/CB3M) 47 kW · 64 CV2005–2010K9K 740
1.5 dCi (BB3N, CB3N) 62 kW · 84 CV2007–2009K9K 718
1.6 (B/CB0D, BB00) 66 kW · 90 CV1998–2005K7M 746, K7M 744, K7M 745
1.6 (BB01, BB1J) 81 kW · 110 CV1999–2009K4M 740, K4M 748
1.6 16V (BB01, BB0H, BB0T, BB14, BB1D, BB1R, BB2KL, BB3G... 79 kW · 107 CV1998–2005K4M 742, K4M 743, K4M 708, K4M 744, K4M 745, K4M 740, K4M 748
1.9 D (B/CB0E, BB0J) 47 kW · 64 CV1998–2005F8Q 632, F8Q 630
1.9 D (B/CB0J) 48 kW · 65 CV2000–2001F8Q 632, F8Q 630
1.9 dTi (B/CB0U) 59 kW · 80 CV1999–2005F9Q 780, F9Q 782

CLIO II Furgone/hatchback (SB0/1/2_)10

1.2 (SB0A, SB0F, SB1K, SB2D) 43 kW · 58 CV1998–oggiD7F 746, D7F 720, D7F 726
1.5 dCi 59 kW · 80 CV2001–2004K9K 702
1.5 dCi 60 kW · 82 CV2003–oggiK9K 710, K9K 716, K9K 702
1.5 dCi 50 kW · 68 CV2004–oggiK9K 714
1.5 dCi (SB07) 48 kW · 65 CV2001–oggiK9K 704, K9K 700
1.5 dCi (SB3M) 47 kW · 64 CV2005–2010K9K 740
1.9 D (SB0E) 47 kW · 64 CV1998–oggiF8Q 630
1.9 D (SB0J) 48 kW · 65 CV2000–2001F8Q 632
1.9 D (SB0R) 40 kW · 54 CV1999–2000F8Q 662
1.9 DTi (SB0U) 59 kW · 80 CV2000–2001F9Q 780

LOGAN I (LS_)6

1.4 55 kW · 75 CV2004–oggiK7J 710
1.5 dCi 48 kW · 65 CV2006–2013K9K 794, K9K 700, K9K 790
1.5 dCi 50 kW · 68 CV2007–oggiK9K 792
1.5 dCi 63 kW · 86 CV2008–2015K9K 796
1.6 64 kW · 87 CV2004–oggiK7M 710
1.6 (LS0L, LS09, LS0V, LS0P, LS18, LS1S, LS1V, LS1Y,... 77 kW · 105 CV2007–2013K4M 697, K4M 694, K4M 698, K4M 696, K4M 690

LOGAN I Familiare (KS_)6

1.4 55 kW · 75 CV2007–oggiK7J 710
1.5 dCi 50 kW · 68 CV2007–oggiK9K 792
1.5 dCi 63 kW · 86 CV2008–2015K9K 796
1.5 dCi (KS04, KS1L) 66 kW · 90 CV2011–2015K9K 892
1.6 64 kW · 87 CV2007–oggiK7M 710
1.6 (KS0L, KS0M, KS0P, KS1S) 77 kW · 105 CV2007–oggiK4M 697, K4M 696, K4M 690

MEGANE I (BA0/1_)22

1.4 16V (BA0D, BA1H, BA0W, BA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.4 Eco (BA0T) 52 kW · 71 CV1996–1999E7J 624
1.4 e (BA0E, BA0V) 55 kW · 75 CV1996–2003E7J 764, E7J 626
1.6 16V 81 kW · 110 CV2001–2008K4M 700
1.6 16V (BA04, BA0B, BA11, BA1J, BA16, BA19, BA1K, BA1V,... 79 kW · 107 CV1999–2002K4M 708, K4M 706, K4M 704, K4M 709, K4M 700, K4M 701
1.6 LPG 66 kW · 90 CV1995–1999K7M 702
1.6 LPG 80 kW · 109 CV2000–2002K4M 704, K4M 712
1.6 e (BA0F, BA0S) 66 kW · 90 CV1996–1999K7M 702, K7M 703, K7M 790
1.6 i (BA0L) 55 kW · 75 CV1996–1999K7M 720
1.8 16V (BA06, BA12, BA1A, BA1M, BA1R) 85 kW · 115 CV2001–2003F4P 720, F4P 722
1.9 D 69 kW · 94 CV1996–2001F8Q 784
1.9 D Eco (BA0A, BA0U, BA0R) 47 kW · 64 CV1996–2003F8Q 620, F8Q 622, F8Q 624
1.9 DCi 77 kW · 105 CV1999–2003F9Q 738, F9Q 732
1.9 TDI 69 kW · 94 CV1996–2003F8Q 786, F8Q 784
1.9 dCi (BA05, BA1F) 75 kW · 102 CV2001–2003F9Q 732, F9Q 733
1.9 dT 76 kW · 104 CV1998–1999F8Q 784
1.9 dT (B/SA0K, B/SA0Y) 66 kW · 90 CV1996–2003F8Q 786, F8Q 784
1.9 dTi (BA08, BA0N) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 730, F9Q 734
1.9 dTi (BA1U) 59 kW · 80 CV2001–2003F9Q 744
2.0 85 kW · 115 CV1998–2001F3R 750, F3R 797, F3R 798, F3R 751, F3R 791, F3R 796
2.0 i 80 kW · 109 CV1999–2003F3R 750, F3R 751
2.0 i (BA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 751

MEGANE I Cabriolet (EA0/1_)5

1.4 16V (EA0D, EA1H, EA0W, EA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.6 16V (EA04, EA0B, EA11, EA1J) 79 kW · 107 CV1999–2003K4M 708, K4M 709, K4M 700, K4M 701
1.6 e (EA0F) 66 kW · 90 CV1996–1999K7M 702, K7M 703
2.0 (EA0G) 84 kW · 114 CV1997–2003F3R 750, F3R 798
2.0 i (EA0G) 80 kW · 109 CV1999–2003F3R 791, F3R 796

MEGANE I Classic (LA0/1_)18

1.4 (LA0E, LA0V) 55 kW · 75 CV1996–2003E7J 764, E7J 626
1.4 16V (LA0D, LA1H, lA0W, LA10) 70 kW · 95 CV1999–2003K4J 714, K4J 750
1.6 64 kW · 87 CV2000–2000K7M 704
1.6 16V 81 kW · 110 CV1999–2001
1.6 16V (LA00, LA04, LA0B, LA11, LA16, LA19, LA1J, LA1K,... 79 kW · 107 CV1999–2003K4M 708, K4M 706, K4M 709, K4M 700, K4M 701
1.6 e (LA0F, LA0S) 66 kW · 90 CV1996–1999K7M 702, K7M 703, K7M 790
1.6 i (LA0L) 55 kW · 75 CV1996–1999K7M 720
1.8 16V (LA06, LA12, LA1A, LA1M, LA1R) 85 kW · 115 CV2001–2003F4P 720, F4P 722
1.9 D (LA0A, LA0U, LA0R) 47 kW · 64 CV1996–2003F8Q 620, F8Q 622, F8Q 624
1.9 dCi (LA05) 77 kW · 105 CV1999–2003F9Q 732, F9Q 733
1.9 dCi (LA05, LA1F) 75 kW · 102 CV2001–2003F9Q 738, F9Q 732, F9Q 733
1.9 dT 76 kW · 104 CV1998–1999F8Q 784
1.9 dT (LA0K, LA0Y) 66 kW · 90 CV1996–2003F8Q 786, F8Q 784
1.9 dTi (LA08, LA0N, LA0K) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 730, F9Q 734
1.9 dTi (LA1U) 59 kW · 80 CV2001–2003F9Q 744
2.0 85 kW · 115 CV1998–2001F3R 750, F3R 797, F3R 798, F3R 752, F3R 791, F3R 796
2.0 RT 112 kW · 152 CV1996–1999
2.0 i (LA07, LA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 797, F3R 798, F3R 752, F3R 751, F3R 791, F3R 796

MEGANE I Coach (DA0/1_)7

1.4 16V (DA0D, DA1H, DA0W, DA10) 70 kW · 95 CV1999–2003K4J 700, K4J 714, K4J 750
1.6 16V (DA0B, DA04, DA11) 79 kW · 107 CV1999–2003K4M 708, K4M 709, K4M 700, K4M 701
1.6 e (DA0F) 66 kW · 90 CV1996–1999K7M 702, K7M 703
1.9 dCi (DA05, DA1F) 75 kW · 102 CV2001–2003F9Q 732, F9Q 733
1.9 dTi (DA0N) 72 kW · 98 CV1997–2001F9Q 731, F9Q 736, F9Q 734
2.0 i 80 kW · 109 CV1999–2003F3R 750, F3R 797, F3R 798, F3R 751, F3R 791, F3R 796
2.0 i (DA0G) 84 kW · 114 CV1996–2003F3R 750, F3R 798, F3R 751

MEGANE I Hatchback Van (SA0/1_)2

1.9 (SA0U, SA0R, SA0A) 47 kW · 64 CV1995–2000F8Q 620, F8Q 622, F8Q 624
1.9 dCi 59 kW · 80 CV2000–2003F9Q 738, F9Q 744

SANDERO/STEPWAY I (BS_)5

1.6 75 kW · 102 CV2007–2013K7M 710
1.6 76 kW · 103 CV2007–2013K4M 697
1.6 62 kW · 84 CV2010–2013K7M 718
1.6 77 kW · 105 CV2012–2012K4M 690
1.6 (BS0H, BS0F) 64 kW · 87 CV2009–2012K7M 710, K7M 718

THALIA I (LB_)14

1.2 16V 55 kW · 75 CV2002–2009D4F 728
1.4 55 kW · 75 CV2000–2005K7J 700
1.4 (LB17) 72 kW · 98 CV2000–2009K7J 700
1.4 16V 72 kW · 98 CV2000–2009K4J 712
1.5 dCi 60 kW · 82 CV2001–2009K9K 706
1.5 dCi 62 kW · 84 CV2001–2009K9K 718
1.5 dCi 48 kW · 65 CV2002–2009K9K 700
1.5 dCi 50 kW · 68 CV2003–2009K9K 714, K9K 700
1.5 dCi 58 kW · 79 CV2004–2009K9K 706
1.5 dCi 47 kW · 64 CV2005–2009K9K 740
1.6 66 kW · 90 CV1998–2008K7M 746
1.6 82 kW · 112 CV2004–2008K4M 736
1.6 16V 79 kW · 107 CV2000–2009K4M 740
1.9 D 48 kW · 65 CV1998–2001F8Q 630

THALIA II (LU_)10

1.2 16V (LU2V) 55 kW · 75 CV2008–2014D4F 728
1.2 LPG 55 kW · 75 CV2010–2013D4F 728
1.4 55 kW · 75 CV2008–2014K7J 700
1.4 72 kW · 98 CV2009–2011K4J 712
1.5 dCi 62 kW · 85 CV2008–2012K9K 718
1.5 dCi 47 kW · 64 CV2008–2014K9K 740
1.5 dCi 48 kW · 65 CV2009–2014K9K 700
1.5 dCi 66 kW · 90 CV2009–2012K9K 834
1.6 16V 77 kW · 105 CV2008–2013K4M 743
1.6 16V (LU1A, LU1B, LU1D, LU2M) 79 kW · 107 CV2009–2014K4M 744, K4M 745

TWINGO I (C06_)3

1.2 16V (C060) 44 kW · 60 CV2004–2007D4F 708
1.2 16V (C06C, C06D, C06K) 55 kW · 75 CV2001–2007D4F 702
1.2 LPG 44 kW · 60 CV2003–2007D7F 702, D7F 708

TWINGO I Furgone/hatchback (S06_)1

1.2 55 kW · 75 CV2001–2012D4F 702

TWINGO II (CN0_)10

1.2 (CN0D) 43 kW · 58 CV2007–2014D7F 800
1.2 16V 55 kW · 75 CV2008–2014D4F 764
1.2 16V (CN04, CN0B) 55 kW · 75 CV2007–2014D4F 764, D4F 770, D4F 772
1.2 16V (CN0K, CN0V, CN0A) 56 kW · 76 CV2007–2010D4F 772
1.2 TCe 100 (CN0P) 75 kW · 102 CV2011–2013D4F 780, D4F 782
1.2 Turbo (CN0C, CN0F) 74 kW · 100 CV2007–2014D4F 780, D4F 782
1.5 dCi (CN0E) 47 kW · 64 CV2007–2014K9K 740
1.5 dCi (CN0U) 62 kW · 84 CV2008–2014K9K 718
1.5 dCi 75 55 kW · 75 CV2010–2014K9K 820
1.5 dCi 90 63 kW · 86 CV2010–2014K9K 820

TWINGO II Furgone/hatchback (CNO_)2

1.2 (CN01, CN06) 55 kW · 75 CV2010–2014D4F 770
1.5 dCi (CN03) 55 kW · 75 CV2010–2014K9K 820
