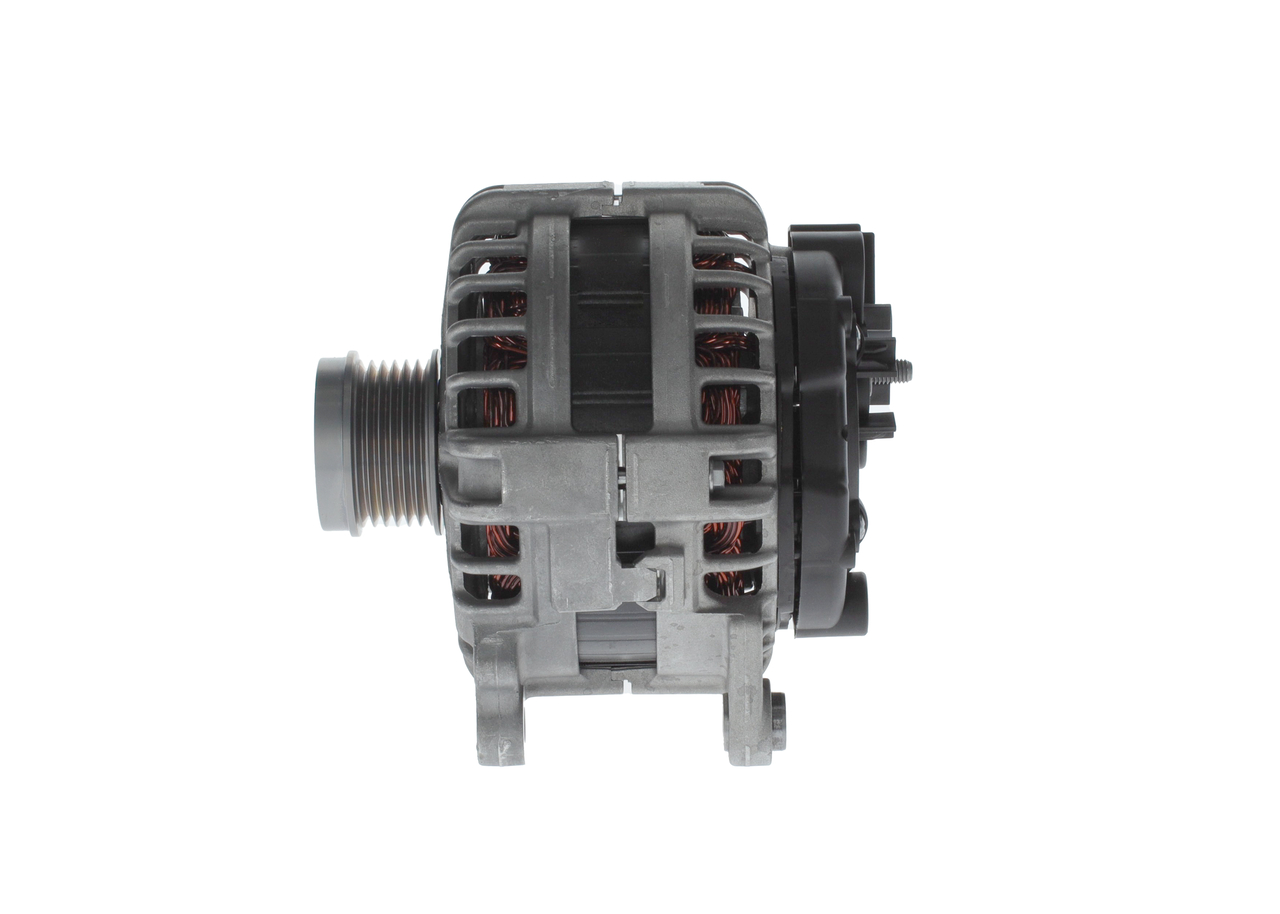

Alternatore BOSCH 1986A01246
BOSCH
BOSCH

Alternatore

Codice 1986A01246 · EAN 4047026612080

291,00 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua AUDI A6 C5 (4B2, 4B4) 2.8 quattro. Vedi i ricambi per la tua auto · auto compatibili
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

Caratteristiche

Tensione [V]
14
Alternatore-Corrente Carica [A]
140
Tipo Fissaggio
SUPPORTO OSCILLANTE DOPPIO
Tipo Alternatore
SENZA POMPA A DEPRESSIONE
Distanza Da Puleggia A Alternatore [Mm]
30
Senso Rotazione
SENSO ROTAZIONE ORARIO
Puleggia
CON PULEGGIA A RUOTA LIBERA
N° Scanalature
7
Puleggia -Ø [Mm]
52,3
Morsetto
B+(M8)
Id Tipo Di Spina
181
Lunghezza [ Mm ]
202
Estensione Riparazione Consigliata
CINGHIA TRAPEZOIDALE/CINGHIA POLY-V

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

158 versioni di 57 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

AUDI22 versioni
A1 Allstreet (GBH)3
  • 25 TFSI 70 kW · 95 CV2022–oggiDLAC
  • 30 TFSI 81 kW · 110 CV2022–oggiDLAA
  • 35 TFSI 110 kW · 150 CV2022–oggiDXDB, DPCA
A1 City Carver (GBH)2
  • 25 TFSI 70 kW · 95 CV2019–2022DKLA
  • 30 TFSI 81 kW · 110 CV2020–2022DLAA
A1 Sportback (GBA)3
  • 25 TFSI 70 kW · 95 CV2018–oggiDKLA, DUSB, DLAC
  • 30 TFSI 81 kW · 110 CV2020–oggiDLAA
  • 35 TFSI 110 kW · 150 CV2018–oggiDXDB, DPCA, DADA
A3 Limousine (8YS, 8YM)3
A3 Sportback (8YA, 8YF)4
Q2 (GAB, GAG)3
  • 30 TFSI 85 kW · 116 CV2018–oggiDKRF, DUSA
  • 30 TFSI 81 kW · 110 CV2020–oggiDLAA
  • 35 TFSI 110 kW · 150 CV2018–oggiDXDB, DPCA, DADA
Q3 (F3B)2
Q3 Sportback (F3N)2
CUPRA3 versioni
FORMENTOR (KM7, KMP)1
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA
LEON (KL1, KU1, KUG)1
  • 1.5 TSI 110 kW · 150 CV2022–oggiDXDB, DPCA
LEON Sportstourer (KL8, KU8, KUD)1
  • 1.5 TSI 110 kW · 150 CV2022–oggiDXDB, DPCA
SEAT35 versioni
ALHAMBRA (710, 711)1
  • 1.4 TSI 110 kW · 150 CV2015–2022CZDA, DJKA
ALHAMBRA VAN (711)1
  • TSi 110 kW · 150 CV2015–2022CZDA
ARONA (KJ7, KJP)5
  • 1.0 TGi 66 kW · 90 CV2018–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2017–oggiDUSB, CHZL, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2017–oggiDUSA, DKJA, DXUA, DKRF, CHZJ
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2017–oggiDADA, DPCA, DXDB
ATECA (KH7, KHP)4
  • 1.0 TSI 85 kW · 116 CV2016–oggiDUSA, DKRF, CHZJ
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2018–oggiDADA, DPCA, DXDB
  • 1.5 TSI 4Drive 110 kW · 150 CV2018–oggiDADA, DPCA
IBIZA V (KJ1, KJG)5
  • 1.0 TGI 66 kW · 90 CV2017–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2017–oggiDUSB, CHZL, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2017–oggiDUSA, DKJA, DKRF, CHZJ
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2017–oggiDADA, DPCA, DXDB
LEON (5F1)4
  • 1.0 TSI 85 kW · 115 CV2015–2020CHZD, DKRF
  • 1.0 TSi 63 kW · 86 CV2018–2020DKLB
  • 1.5 TSI 96 kW · 130 CV2018–2020DACA, DPBA
  • 1.5 TSI 110 kW · 150 CV2018–2020DADA, DPCA
LEON (KL1, KLG)5
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.5 TGI CNG 96 kW · 131 CV2020–oggiDHFA
  • 1.5 TSI 96 kW · 131 CV2019–oggiDPBA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
LEON SC (5F5)1
  • 1.0 TSI 85 kW · 115 CV2015–2018CHZD
LEON Sportstourer (KL8, KLD)5
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TGi 96 kW · 131 CV2021–oggiDHFA
  • 1.5 TSI 96 kW · 131 CV2020–oggiDPBA
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DXDB
LEON ST (5F8)3
  • 1.0 TSi 63 kW · 86 CV2018–2020DKLB
  • 1.5 TSI 96 kW · 130 CV2018–2020DACA, DPBA
  • 1.5 TSI 110 kW · 150 CV2018–2020DADA, DPCA
TARRACO (KN2)1
  • 1.5 TSI ACT 110 kW · 150 CV2018–2024DADA, DPCA, DXDB
SKODA37 versioni
FABIA III (NJ3)2
  • 1.0 TSI 70 kW · 95 CV2014–2021CHZB, DKLD
  • 1.0 TSI 81 kW · 110 CV2014–2021DKRC, CHZC
FABIA III Familiare (NJ5)2
  • 1.0 TSI 70 kW · 95 CV2014–2022CHZB, DKLD
  • 1.0 TSI 81 kW · 110 CV2014–2022DKRC, CHZC
FABIA IV (PJ3)5
  • 1.0 TSI 81 kW · 110 CV2021–oggiDLAA
  • 1.0 TSI 70 kW · 95 CV2021–oggiDUSB, DLAC
  • 1.0 TSI 85 kW · 116 CV2024–oggiDUSA
  • 1.5 Rally2 140 kW · 190 CV2024–oggi
  • 1.5 TSI 110 kW · 150 CV2021–oggiDPCA, DXDB
KAMIQ (NW4)5
  • 1.0 TGI CNG 66 kW · 90 CV2019–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2019–oggiDUSB, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKJA, DKRF, DUSA, DXUA
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DADA, DXDB
KAROQ (NU7, ND7)4
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.4 TSI 110 kW · 150 CV2017–oggiCZEA, DJKA
  • 1.5 TSI 110 kW · 150 CV2017–oggiDPCA, DADA, DXDB
  • 1.5 TSI 4x4 110 kW · 150 CV2017–oggiDPCA, DADA
KODIAQ I (NS6, NS7, NV7)2
  • 1.5 TSI 110 kW · 150 CV2018–oggiDPCA, DADA
  • 1.5 TSI 4x4 110 kW · 150 CV2018–oggiDPCA, DADA
OCTAVIA III (5E3, NL3, NR3)1
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
OCTAVIA III Combi (5E5, 5E6)1
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
OCTAVIA IV (NX3, NN3, PV3)4
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.4 TSI 110 kW · 150 CV2021–oggiDJKA
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DXDB
  • 1.5 TSI G-TEC 96 kW · 131 CV2020–oggiDHFA
OCTAVIA IV Combi (NX5, PV5)4
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.4 TSI 110 kW · 150 CV2020–oggiDJKA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
  • 1.5 TSI G-TEC 96 kW · 131 CV2020–oggiDHFA
SCALA (NW1)5
  • 1.0 TGI CNG 66 kW · 90 CV2019–oggiDBYA
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKJA, DKRF, DUSA, DXUA
  • 1.0 TSI 70 kW · 95 CV2019–oggiDUSB, DKLA, DLAC
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DADA, DXDB
SUPERB III (3V3)1
  • 1.5 TSI 110 kW · 150 CV2017–2024DPCA, DADA
SUPERB III Familiare (3V5)1
  • 1.5 TSi 110 kW · 150 CV2015–2024DPCA, DADA
VOLKSWAGEN61 versioni
ARTEON (3H7, 3H8)1
  • 1.5 TSI 110 kW · 150 CV2017–oggiDPCA, DADA
ARTEON SHOOTING BRAKE (3H9)1
  • 1.5 TSi 110 kW · 150 CV2020–oggiDPCA
CADDY CALIFORNIA V Camper (SBB, SBJ)1
CADDY V Cassone/Limousine spaziosa (SBA, SBH)2
CADDY V MPV / Space wagon (SBB, SBJ)2
GOLF SPORTSVAN VII (AM1, AN1)4
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
GOLF VII (5G1, BQ1, BE1, BE2)4
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
GOLF VIII (CD1, DA1)7
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.4 TSI 110 kW · 150 CV2021–oggiDJKA
  • 1.5 TGI 96 kW · 131 CV2020–oggiDHFA
  • 1.5 TSI 96 kW · 131 CV2019–oggiDPBA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
  • 2.0 TSI 4motion 150 kW · 204 CV2024–oggiDNNE
GOLF VIII Variant (CG5, DB5)6
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.5 TGI 96 kW · 131 CV2020–oggiDHFA
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DXDB
  • 1.5 TSI 96 kW · 131 CV2020–oggiDPBA
  • 2.0 TSI 4motion 150 kW · 204 CV2024–oggiDNNE
GOLF VII Variant (BA5, BV5)4
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
PASSAT B8 (3G2, CB2)1
  • 1.5 TSI 110 kW · 150 CV2018–2024DPCA, DADA
PASSAT B8 Variant (3G5, CB5)1
  • 1.5 TSI 110 kW · 150 CV2018–2024DPCA, DADA
POLO VI (AW1, BZ1, AE1)5
  • 1.0 TGI 66 kW · 90 CV2017–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2017–oggiDKLA, DUSB, CHZL, DXTA, DLAC
  • 1.0 TSI 85 kW · 116 CV2017–oggiCHZJ, DKJA, DKRF, DUSA, DXUA
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2018–2021DPCA, DADA
SHARAN (7N1, 7N2)1
  • 1.4 TSI 110 kW · 150 CV2015–2022CZDA, DJKA
T-CROSS (C11, D31)4
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.0 TSi 70 kW · 95 CV2018–oggiDKLA, DUSB, CHZL, DXTA, DLAC
  • 1.0 TSi 85 kW · 116 CV2018–oggiDKJA, DKRF, DUSA, DXUA
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DADA, DXDB
T-ROC (A11, D11)4
  • 1.0 TSI 85 kW · 116 CV2017–oggiCHZJ, DKRF, DUSA
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2017–oggiDPCA, DADA, DXDB
  • 1.5 TSI 4motion 110 kW · 150 CV2018–2019DPCA, DADA
T-ROC Cabriolet (AC7, AC8)3
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKRF, DUSA
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
TAIGO (CS1)4
  • 1.0 TSI 70 kW · 95 CV2021–oggiDUSB, DXTA, DLAC
  • 1.0 TSI 81 kW · 110 CV2021–2024DLAA
  • 1.0 TSI 85 kW · 116 CV2021–oggiDUSA, DXUA
  • 1.5 TSI 110 kW · 150 CV2021–oggiDPCA, DXDB
TIGUAN (AD1, AX1)2
  • 1.5 TSI 110 kW · 150 CV2018–2024DPCA, DADA, DXDB
  • 1.5 TSI 96 kW · 131 CV2018–2024DPBE, DACB
TIGUAN ALLSPACE (BW2, BJ2)1
  • 1.5 TSI 110 kW · 150 CV2018–oggiDPCA, DADA, DXDB
TOURAN (5T1)1
  • 1.5 TSI 110 kW · 150 CV2018–oggiDPCA, DADA, DXDB
UP! (121, 122, BL1, BL2, BL3, 123)2
  • 1.0 GTI 85 kW · 115 CV2017–2023DKRA
  • 1.0 TSI 66 kW · 90 CV2016–2019CHZA, DKLC
