BREMBO

Disco freno

Name: Disco freno BREMBO 09A43075
Brand: BREMBO
SKU: BRM09A43075
Price: 103.12 EUR
Availability: OutOfStock

Codice 09A43075 · EAN 8020584324165

103,12 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua FORD GALAXY III (CK) 1.5 EcoBoost. Vedi i ricambi per la tua auto · auto compatibili

Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

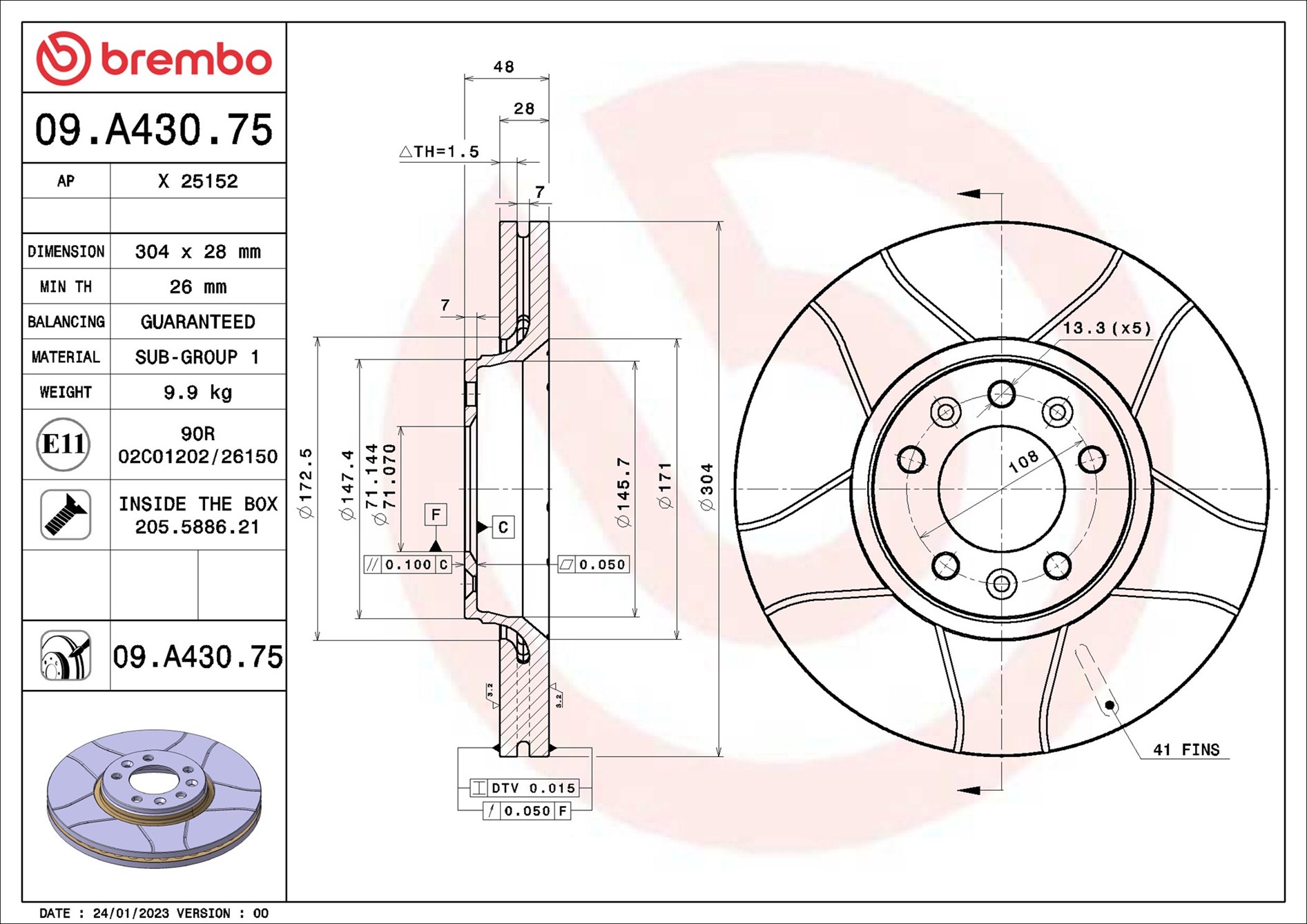

Caratteristiche

Tipo Disco Freno: VENTILAZIONE INTERNAINTAGLIATO
Informazione Breve: PER MASSIME PRESTAZIONI SUL BAGNATO, BREMBO MAX È IL DISCOBAFFATO E VERNICIATO ALLA PORTATA DI TUTTI GLI ENTUSIASTI.
Spessore Disco Freno [Mm]: 28
N° Fori: 5
Articolo Complementare/Info Integrativa 2: CON BULLONI/VITI
Altezza [Mm]: 48
Diametro Centraggio [Mm]: 71
Diametro Esterno [Mm]: 304
Superficie: RIVESTITO
Spessore Min. [Mm]: 26

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

125 versioni di 17 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

Cerca la tua auto

CITROEN61 versioni

C5 II (RC_)3

1.6 HDi (RC8HZB) 80 kW · 109 CV2004–20089HZ (DV6TED4), 9HY (DV6TED4)
1.8 16V 92 kW · 125 CV2005–20086FY (EW7A)
2.0 16V (RCRFJB, RCRFJC) 103 kW · 140 CV2004–2008RFJ (EW10A)

C5 II Break (RE_)4

1.6 HDi (RE9HZC, RE9HYB) 80 kW · 109 CV2004–20089HZ (DV6TED4), 9HY (DV6TED4)
1.8 16V (RE6FYB) 92 kW · 125 CV2005–20086FY (EW7A)
2.0 16V (RERFJB, RERFJC) 103 kW · 140 CV2004–2008RFJ (EW10A)
2.0 HDi (RERHRH) 100 kW · 136 CV2004–2008RHR (DW10BTED4)

C5 III (RD_)15

1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) 82 kW · 112 CV2010–20129HL (DV6C), 9HR (DV6C)
1.6 HDi 110 (RD9HZC) 80 kW · 109 CV2008–20109HZ (DV6TED4)
1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) 84 kW · 114 CV2012–20159HL (DV6C), 9HR (DV6C)
1.6 THP 150 (RD5FN8, RD5FNA) 110 kW · 150 CV2010–20165FN (EP6CDT)
1.6 THP 155 (RD5FV8, RD5FNA) 115 kW · 156 CV2009–20165FV (EP6CDT)
1.6 VTi 120 (RD5FS8, RD5FSA) 88 kW · 120 CV2010–20155FS (EP6C)
1.8 16V (RD6FXC) 92 kW · 125 CV2008–20106FY (EW7A)
2.0 16V (RDRFJC, RDRFJF) 103 kW · 140 CV2008–2014RFJ (EW10A)
2.0 16V (RDRFJF) 105 kW · 143 CV2008–2012RFJ (EW10A)
2.0 16V BioFlex (RDRFJF) 103 kW · 140 CV2008–2012RFJ (EW10A)
2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ) 100 kW · 136 CV2008–2014RHR (DW10BTED4), RHD (DW10CTED4), RHF (DW10BTED4)
2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ) 103 kW · 140 CV2008–2015RHA (DW10CTED4), RHF (DW10BTED4)
2.0 HDi 150 / BlueHDi 150 (RDRHEA, RDRHE8, RDAHRM,... 110 kW · 150 CV2009–2017AHR (DW10FD), RHE (DW10CTED4), AHX (DW10FD)
2.0 HDi 165 (RDRHHA, RDRHH8) 120 kW · 163 CV2009–2016RHH (DW10CTED4)
2.2 HDi (RD4HTH, RD4HPH, RD4HRH, RD4HSH) 120 kW · 163 CV2009–20114HP (DW12BTED4), 4HR (DW12BTED4)

C5 III Break (RW_)14

1.6 HDi 110 82 kW · 112 CV2010–20129HL (DV6C), 9HR (DV6C)
1.6 HDi 110 (RW9HZC) 80 kW · 109 CV2008–20109HZ (DV6TED4)
1.6 HDi 115 84 kW · 114 CV2012–20159HL (DV6C), 9HR (DV6C)
1.6 THP 150 110 kW · 150 CV2009–20165FN (EP6CDT)
1.6 THP 155 115 kW · 156 CV2009–20165FV (EP6CDT)
1.6 VTI 120 88 kW · 120 CV2010–20155FS (EP6C)
1.8 i 16V (RW6FYC) 92 kW · 125 CV2008–20106FY (EW7A)
2.0 16V 105 kW · 143 CV2008–2012RFJ (EW10A)
2.0 16V BioFlex 103 kW · 140 CV2008–2010RFJ (EW10A)
2.0 HDi 100 kW · 136 CV2008–2014RHR (DW10BTED4), RHD (DW10CTED4)
2.0 HDi 140 103 kW · 140 CV2009–2015RHA (DW10CTED4), RHF (DW10BTED4)
2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8) 110 kW · 150 CV2009–2017AHR (DW10FD), RHE (DW10CTED4)
2.0 HDi 165 120 kW · 163 CV2009–2016RHH (DW10CTED4)
2.0 i 16V (RWRFJC, RWRFJF) 103 kW · 140 CV2008–2014RFJ (EW10A)

JUMPY II (VF7)8

1.6 HDi 90 16V 66 kW · 90 CV2007–20169HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–20169HH (DV6DUM), 9HM (DV6UC)
2.0 HDi 120 88 kW · 120 CV2007–2016RHK (DW10UTED4)
2.0 HDi 125 94 kW · 128 CV2011–2016AHZ (DW10CD)
2.0 HDi 140 100 kW · 136 CV2007–2016RHR (DW10BTED4)
2.0 HDi 165 120 kW · 163 CV2010–2016RHH (DW10CTED4)
2.0 HDi 95 72 kW · 98 CV2011–2016AHY (DW10CE)
2.0 i 103 kW · 140 CV2007–2016RFH (EW10A), RFJ (EW10A)

JUMPY II Furgone10

1.6 HDi 90 16V 66 kW · 90 CV2007–20169HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–20169HH (DV6DUM), 9HM (DV6UC)
2.0 HDi 120 88 kW · 120 CV2007–2016RHK (DW10UTED4)
2.0 HDi 120 4x4 88 kW · 120 CV2010–2016RHK (DW10UTED4)
2.0 HDi 125 94 kW · 128 CV2011–2016AHZ (DW10CD)
2.0 HDi 125 4x4 94 kW · 128 CV2011–2016AHZ (DW10CD)
2.0 HDi 140 100 kW · 136 CV2007–2016RHR (DW10BTED4)
2.0 HDi 165 120 kW · 163 CV2010–2016RHH (DW10CTED4)
2.0 HDi 95 72 kW · 98 CV2011–2016AHY (DW10CE)
2.0 i 103 kW · 140 CV2007–2016RFH (EW10A)

JUMPY II Pianale piatto/Telaio7

1.6 HDi 90 16V 66 kW · 90 CV2007–20169HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–20169HH (DV6DUM)
2.0 HDI (X_RHG) 88 kW · 120 CV2009–2016RHK (DW10UTED4)
2.0 HDI (X_RHH) 120 kW · 163 CV2010–2016
2.0 HDI 100 (X_AHY) 72 kW · 98 CV2011–2016AHY (DW10CE)
2.0 HDi 125 94 kW · 128 CV2011–oggiAHZ (DW10CD)
2.0 I (X_RFH) 103 kW · 140 CV2006–2016

FIAT23 versioni

SCUDO Autobus (270_, 272_)9

1.6 D Multijet 66 kW · 90 CV2007–20169HU
1.6 D Multijet 66 kW · 90 CV2011–20169HM (DV6UC), 9H07 (DV6UC)
2.0 D Multijet 88 kW · 120 CV2007–2016RHG, RHK
2.0 D Multijet 100 kW · 136 CV2007–2016RHR
2.0 D Multijet 120 kW · 163 CV2010–2016RH02, RHH
2.0 D Multijet 94 kW · 128 CV2011–2016RH02
2.0 D Multijet 4x4 88 kW · 120 CV2007–2016RHK
2.0 D Multijet 4x4 100 kW · 136 CV2007–2016RHR
2.0 D Multijet 4x4 94 kW · 128 CV2011–2016RH02

SCUDO Furgone (270_, 272_)9

1.6 D Multijet 66 kW · 90 CV2007–20169HU
1.6 D Multijet 66 kW · 90 CV2011–20169HM (DV6UC), 9H07 (DV6UC)
2.0 D Multijet 88 kW · 120 CV2007–2016RHG, RHK
2.0 D Multijet 100 kW · 136 CV2007–2016RHR
2.0 D Multijet 120 kW · 163 CV2010–2016RH02, RHH
2.0 D Multijet 94 kW · 128 CV2011–2016RH02
2.0 D Multijet 4x4 100 kW · 136 CV2007–2016RHR
2.0 D Multijet 4x4 88 kW · 120 CV2007–2016RHG, RHK
2.0 D Multijet 4x4 94 kW · 128 CV2011–2016RH02

SCUDO Pianale piatto/Telaio (270_, 272_)5

1.6 D Multijet 66 kW · 90 CV2007–20169HU
2.0 D Multijet 88 kW · 120 CV2007–2016RHG, RHK
2.0 D Multijet 100 kW · 136 CV2007–2016DW10BTED4, RHR
2.0 D Multijet 120 kW · 163 CV2010–2016RH02, RHH
2.0 D Multijet 94 kW · 128 CV2011–2016RH02

PEUGEOT37 versioni

2.0 HDi2

2.0 HDi 100 kW · 136 CV2005–oggiRHR (DW10BTED4)
2.0 HDi 120 kW · 163 CV2009–oggiRHH (DW10CTED4)

407 (6D_)4

2.0 HDi (6DRHHA) 120 kW · 163 CV2009–2010RHH (DW10CTED4)
2.0 HDi (6DRHLG, 6DRHLE) 93 kW · 126 CV2004–2007RHL (DW10BTED4)
2.0 HDi (6DRHRH) 103 kW · 140 CV2009–2010RHR (DW10BTED4)
2.0 HDi 135 (6DRHRH, 6DRHRE, 6DRHRG, 6DRHRJ) 100 kW · 136 CV2004–2010RHR (DW10BTED4)

407 SW (6E_, 6D_)4

2.0 HDi 93 kW · 126 CV2004–2007RHL (DW10BTED4)
2.0 HDi 103 kW · 140 CV2008–2010RHR (DW10BTED4)
2.0 HDi 120 kW · 163 CV2009–2010RHH (DW10CTED4)
2.0 HDi 135 100 kW · 136 CV2004–2010RHR (DW10BTED4)

EXPERT Furgone (VF3A_, VF3U_, VF3X_)10

1.6 HDi 90 16V 66 kW · 90 CV2007–oggi9HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–oggi9HM (DV6UC), 9HH (DV6DUM)
2.0 16V 103 kW · 140 CV2007–oggiRFJ (EW10A), RFH (EW10A)
2.0 HDi 100 72 kW · 98 CV2011–oggi
2.0 HDi 120 88 kW · 120 CV2007–oggiRHK (DW10UTED4)
2.0 HDi 120 4x4 88 kW · 120 CV2010–oggiRHK (DW10UTED4)
2.0 HDi 130 94 kW · 128 CV2011–oggiAHZ (DW10CD)
2.0 HDi 130 4x4 94 kW · 128 CV2012–2016AHZ (DW10CD)
2.0 HDi 140 100 kW · 136 CV2007–oggiRHR (DW10BTED4)
2.0 HDi 165 120 kW · 163 CV2009–oggiRHH (DW10CTED4)

EXPERT Pianale piatto/Telaio7

1.6 HDi 90 16V 66 kW · 90 CV2007–oggi9HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–oggi9HM (DV6UC), 9HH (DV6DUM)
2.0 16V (X_RFH) 103 kW · 140 CV2007–2016
2.0 HDi 120 88 kW · 120 CV2007–oggiRHK (DW10UTED4)
2.0 HDi 130 94 kW · 128 CV2011–oggiAHZ (DW10CD)
2.0 HDi 140 100 kW · 136 CV2007–oggiRHR (DW10BTED4)
2.0 HDi 165 120 kW · 163 CV2009–oggiRHH (DW10CTED4)

EXPERT TEPEE (VF3X_)10

1.6 HDi 90 16V 66 kW · 90 CV2007–20169HU (DV6UTED4)
1.6 HDi 90 8V 66 kW · 90 CV2007–20169HM (DV6UC), 9HH (DV6DUM)
2.0 16V 103 kW · 140 CV2007–2016RFJ (EW10A), RFH (EW10A)
2.0 HDi 100 72 kW · 98 CV2011–2016AHY (DW10CE)
2.0 HDi 120 88 kW · 120 CV2007–2016RHK (DW10UTED4)
2.0 HDi 120 4x4 88 kW · 120 CV2007–2016RHK (DW10UTED4)
2.0 HDi 130 94 kW · 128 CV2011–oggiAHZ (DW10CD)
2.0 HDi 130 4x4 94 kW · 128 CV2011–2016AHZ (DW10CD)
2.0 HDi 140 100 kW · 136 CV2007–oggiRHR (DW10BTED4)
2.0 HDi 165 120 kW · 163 CV2009–oggiRHH (DW10CTED4)

TOYOTA4 versioni

PROACE Furgone (MDX_)4

1.6 D (MDX9) 66 kW · 90 CV2013–20163WZ-TV (DV6UC)
2.0 D (MDX3) 94 kW · 128 CV2013–20164WZ-FTV (DW10CD)
2.0 D (MDX6) 120 kW · 163 CV2013–20164WZ-FHV (DW10CTED4)
2.0 D 4x4 (MDX4) 94 kW · 128 CV2013–20164WZ-FTV (DW10CD)
