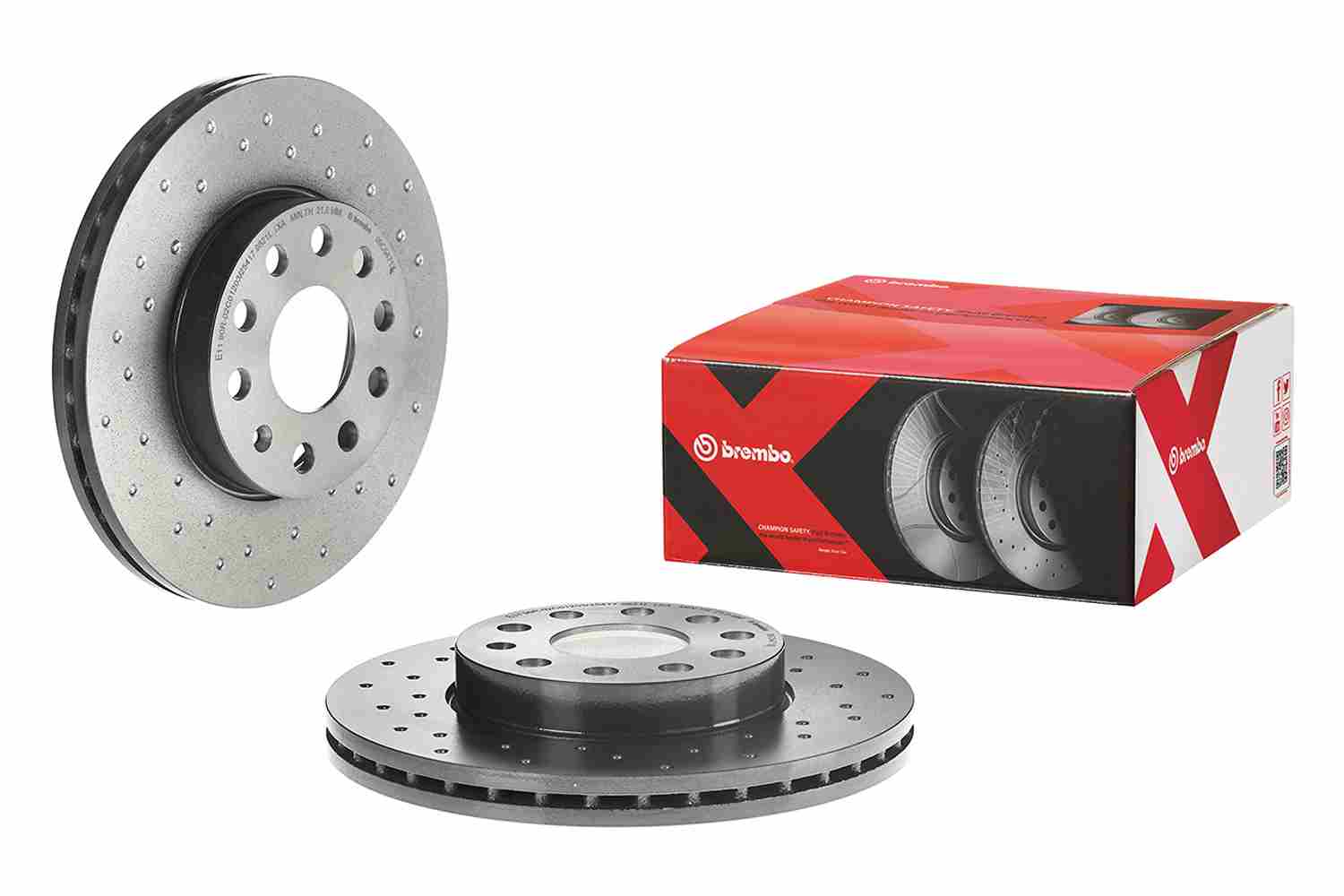

Disco freno BREMBO 09C5471X
BREMBO
BREMBO

Disco freno

Codice 09C5471X · EAN 8020584317044

96,18 €

IVA inclusa

Verifica la compatibilità scegliendo la tua auto, oppure indica targa o telaio nell'ordine: controlliamo prima di spedire.
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

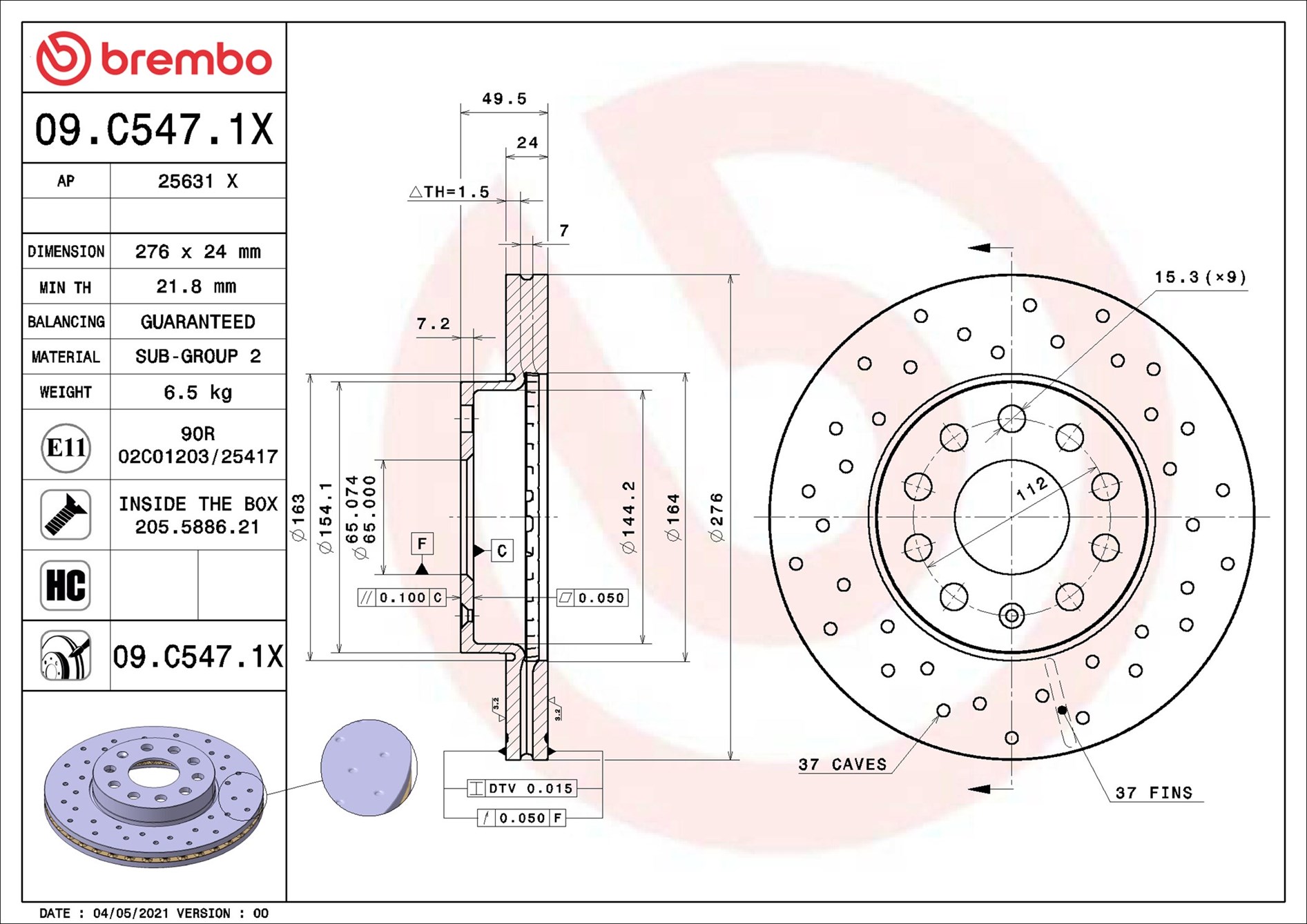

Caratteristiche

Tipo Disco Freno
PERFORATO/VENTILAZIONE INTERNA
Informazione Generale
LA FORATURA SPECIFICA DEI DISCHI XTRA ASSICURA UNAPRESTAZIONE BRILLANTE ED EFFICACE IN OGNI CONDIZIONEDI FRENATA, PER ESALTARE LO STILE DI GUIDA DEI VERIAPPASSIONATI.
Spessore Disco Freno [Mm]
24
N° Fori
5
Articolo Complementare/Info Integrativa 2
CON BULLONI/VITI
Altezza [Mm]
49,5
Diametro Centraggio [Mm]
65
Diametro Esterno [Mm]
276
Lavorazione/Trattamento
AD ALTO TENORE DI CARBONIO
Superficie
RIVESTITO
Spessore Min. [Mm]
21,8

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

231 versioni di 18 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

AUDI43 versioni
A3 (8V1, 8VK)6
  • 1.2 TFSI 77 kW · 105 CV2013–2015CJZA
  • 1.2 TFSI 81 kW · 110 CV2014–2016CYVB
  • 1.6 TDI 77 kW · 105 CV2012–2015CLHA
  • 1.6 TDI 81 kW · 110 CV2013–2017CXXB, CRKB, DBKA
  • 2.0 TDI 81 kW · 110 CV2013–2016CRFA
  • 2.0 TDI quattro 110 kW · 150 CV2012–2017DCYA, CRBC, CRLB
A3 Cabriolet (8V7, 8VE)10
A3 Limousine (8VS, 8VM)15
  • 1.2 TFSI 77 kW · 105 CV2013–2015CJZA
  • 1.2 TFSI 81 kW · 110 CV2014–2016CYVB
  • 1.4 TFSI 103 kW · 140 CV2013–2016CPTA
  • 1.4 TFSI 92 kW · 125 CV2013–2016CZCA, CXSB
  • 1.6 TDI 77 kW · 105 CV2013–2015CLHA
  • 1.6 TDI 81 kW · 110 CV2014–2020CXXB, CRKB, DBKA
  • 1.6 TDI quattro 81 kW · 110 CV2015–2016CXXB
  • 1.8 TFSI 132 kW · 180 CV2013–2016CJSB, CJSA
  • 1.8 TFSI quattro 132 kW · 180 CV2013–2016CJSB
  • 2.0 TDI 81 kW · 110 CV2013–2020CRFA, DEJB
  • 2.0 TDI 110 kW · 150 CV2013–2020DCYA, DBGA, CRBC, CRLB, DFGA, CRUA, DEJA
  • 2.0 TDI quattro 110 kW · 150 CV2013–2020DCYA, CRBC, CRLB
  • 2.0 TFSI 162 kW · 220 CV2015–2020CHHB
  • 35 TDI 110 kW · 150 CV2018–2020DFGA
  • S3 quattro 221 kW · 300 CV2013–2020CJXC, DNUE
A3 Sportback (8VA, 8VF)12
SEAT66 versioni
LEON (5F1)20
  • 1.0 TSI 85 kW · 115 CV2015–2020CHZD, DKRF
  • 1.0 TSi 63 kW · 86 CV2018–2020DKLB
  • 1.2 TSI 63 kW · 86 CV2012–2018CYVA, CJZB
  • 1.2 TSI 77 kW · 105 CV2013–2020CJZA
  • 1.2 TSI 81 kW · 110 CV2014–2020CYVB
  • 1.4 TGI 81 kW · 110 CV2013–2018CPWA
  • 1.4 TSI 90 kW · 122 CV2012–2016CMBA, CXSA
  • 1.4 TSI 103 kW · 140 CV2012–2020CHPA, CPTA
  • 1.4 TSI 92 kW · 125 CV2014–2020CZCA
  • 1.4 TSI 110 kW · 150 CV2014–2020CZDA, CZEA
  • 1.5 TGi 96 kW · 131 CV2018–2020DHFA
  • 1.5 TSI 96 kW · 130 CV2018–2020DACA, DPBA
  • 1.5 TSI 110 kW · 150 CV2018–2020DADA, DPCA
  • 1.6 TDI 77 kW · 105 CV2012–2020CLHA
  • 1.6 TDI 66 kW · 90 CV2012–2018DDYB, CXXA, CLHB
  • 1.6 TDI 81 kW · 110 CV2013–2020CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2016–2020DGTE, DDYA
  • 2.0 TDI 110 kW · 150 CV2012–2020CKFC, CRMB, DFFA
  • 2.0 TDI 105 kW · 143 CV2013–2020CRVC
  • 2.0 TDI 81 kW · 110 CV2013–2020CRLD, CRVA
LEON Furgone/hatchback (5F1)5
  • 1.2 TSI 81 kW · 110 CV2014–2018CYVB
  • 1.6 TDI 66 kW · 90 CV2012–2016CLHB
  • 1.6 TDI 77 kW · 105 CV2012–2016CLHA
  • 1.6 TDI 85 kW · 115 CV2016–2020DDYA
  • 2.0 TDI 110 kW · 150 CV2012–2018CKFC, CRMB
LEON SC (5F5)15
  • 1.0 TSI 85 kW · 115 CV2015–2018CHZD
  • 1.2 TSI 63 kW · 86 CV2013–2018CYVA, CJZB
  • 1.2 TSI 77 kW · 105 CV2013–2014CJZA
  • 1.2 TSI 81 kW · 110 CV2014–2018CYVB
  • 1.4 TSI 90 kW · 122 CV2013–2015CMBA, CXSA
  • 1.4 TSI 103 kW · 140 CV2013–2016CHPA, CPTA
  • 1.4 TSI 92 kW · 125 CV2014–2018CZCA
  • 1.4 TSI 110 kW · 150 CV2014–2018CZEA
  • 1.6 TDI 66 kW · 90 CV2013–2018DDYB, CXXA, CLHB
  • 1.6 TDI 77 kW · 105 CV2013–2018CLHA
  • 1.6 TDI 81 kW · 110 CV2013–2016CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2016–2018DDYA
  • 2.0 TDI 105 kW · 143 CV2013–2018CRVC
  • 2.0 TDI 110 kW · 150 CV2013–2018CKFC, CRMB
  • 2.0 TDI 81 kW · 110 CV2013–2018CRVA
LEON ST (5F8)24
  • 1.0 TSI 85 kW · 115 CV2015–2020CHZD, DKRF
  • 1.0 TSi 63 kW · 86 CV2018–2020DKLB
  • 1.2 TSI 77 kW · 105 CV2013–2020CJZA
  • 1.2 TSI 63 kW · 86 CV2013–2018CYVA, CJZB
  • 1.2 TSI 81 kW · 110 CV2014–2020CYVB
  • 1.4 TGI 81 kW · 110 CV2013–2018CPWA
  • 1.4 TSI 90 kW · 122 CV2012–2015CMBA, CXSA
  • 1.4 TSI 103 kW · 140 CV2013–2020CHPA, CPTA
  • 1.4 TSI 92 kW · 125 CV2014–2018CZCA
  • 1.4 TSI 110 kW · 150 CV2014–2020CZEA
  • 1.5 TGi 96 kW · 131 CV2018–2020DHFA
  • 1.5 TSI 96 kW · 130 CV2018–2020DACA, DPBA
  • 1.5 TSI 110 kW · 150 CV2018–2020DADA, DPCA
  • 1.6 TDI 66 kW · 90 CV2013–2018DDYB, CXXA, CLHB
  • 1.6 TDI 77 kW · 105 CV2013–2020CLHA
  • 1.6 TDI 81 kW · 110 CV2013–2020CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2016–2020DGTE, DDYA
  • 1.6 TDI 4Drive 77 kW · 105 CV2014–2020CLHA
  • 1.6 TDI 4Drive 81 kW · 110 CV2014–2020CXXB
  • 1.6 TDI 4Drive 85 kW · 115 CV2018–2020DGTE
  • 2.0 TDI 110 kW · 150 CV2013–2020DFGA, CRLB, CRBC, CKFC, CRMB, DFFA
  • 2.0 TDI 105 kW · 143 CV2013–2018CRVC
  • 2.0 TDI 81 kW · 110 CV2013–2016CRLD, CRVA
  • 2.0 TDI 4Drive 110 kW · 150 CV2014–2020DFGA, CRLB, CRBC, CRMB, DCYA
LEON ST Furgone/familiare (5F8)2
SKODA31 versioni
OCTAVIA III (5E3, NL3, NR3)15
  • 1.0 TSI 85 kW · 115 CV2016–2020DKRF, DKRA, CHZD
  • 1.2 TSI 63 kW · 86 CV2012–2017CYVA, CJZB
  • 1.2 TSI 77 kW · 105 CV2012–2017CJZA
  • 1.2 TSI 81 kW · 110 CV2015–2017CYVB
  • 1.4 TSI 103 kW · 140 CV2012–2017CHPA
  • 1.4 TSI 110 kW · 150 CV2014–2020CZDA, CHPB
  • 1.4 TSI G-TEC 81 kW · 110 CV2013–2017CPWA
  • 1.6 81 kW · 110 CV2014–2020CWVA
  • 1.6 TDI 77 kW · 105 CV2012–2015CLHA
  • 1.6 TDI 66 kW · 90 CV2012–2020DDYB, CLHB, CXXA
  • 1.6 TDI 81 kW · 110 CV2013–2017CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2017–2020DGTE, DDYA
  • 1.6 TDI 4x4 77 kW · 105 CV2013–2015CLHA
  • 1.6 TDI 4x4 81 kW · 110 CV2015–2017CXXB, CRKB
  • 1.6 TDI 4x4 85 kW · 115 CV2017–2020DGTE
OCTAVIA III Combi (5E5, 5E6)16
  • 1.0 TSI 85 kW · 115 CV2016–2020DKRF, DKRA, CHZD
  • 1.2 TSI 63 kW · 86 CV2012–2017CYVA, CJZB
  • 1.2 TSI 77 kW · 105 CV2012–2017CJZA
  • 1.2 TSI 81 kW · 110 CV2015–2017CYVB
  • 1.4 TSI 103 kW · 140 CV2012–2017CHPA
  • 1.4 TSI 110 kW · 150 CV2014–2020CZDA, CHPB
  • 1.4 TSI G-TEC 81 kW · 110 CV2012–2017CPWA
  • 1.5 TSI G-TEC 96 kW · 130 CV2019–2020DHFA
  • 1.6 SRE 81 kW · 110 CV2014–2017CWVA
  • 1.6 TDI 77 kW · 105 CV2012–2015CLHA
  • 1.6 TDI 66 kW · 90 CV2012–2020DDYB, CLHB, CXXA
  • 1.6 TDI 81 kW · 110 CV2013–2017CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2017–2020DGTA, DGTE, DDYA
  • 1.6 TDI 4x4 77 kW · 105 CV2012–2015CLHA
  • 1.6 TDI 4x4 81 kW · 110 CV2015–2017CXXB, DBKA, CRKB
  • 1.6 TDI 4x4 85 kW · 115 CV2017–2020DGTE
VOLKSWAGEN91 versioni
GOLF ALLTRACK VII Variant (BA5, BV5)3
GOLF SPORTSVAN VII (AM1, AN1)16
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.0 TSI 81 kW · 110 CV2017–2018CHZC
  • 1.2 TSI 81 kW · 110 CV2014–2017CYVB
  • 1.2 TSI 63 kW · 86 CV2014–2017CYVA
  • 1.4 TSI 110 kW · 150 CV2014–2018CZDA
  • 1.4 TSI 92 kW · 125 CV2014–2020CZCA
  • 1.4 TSI MultiFuel 92 kW · 125 CV2014–2017CPVB
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
  • 1.6 81 kW · 110 CV2014–2016CWVA
  • 1.6 TDI 81 kW · 110 CV2014–2016CXXB, DBKA, CRKB
  • 1.6 TDI 66 kW · 90 CV2014–2018DDYB, CRKA, CXXA
  • 1.6 TDI 85 kW · 115 CV2016–2020DGTE, DDYA
  • 2.0 TDI 110 kW · 150 CV2014–2020DFGA, CRLB, DCYA
  • 2.0 TDI 81 kW · 110 CV2014–2017DCYB, CRLD, CRVA
GOLF VAN VII Variant (BA5)8
  • 1.4 TSi 103 kW · 140 CV2013–2017CHPA
  • 1.4 TSi 90 kW · 122 CV2013–2017CXSA
  • 1.6 TDi 81 kW · 110 CV2013–2017CXXB, CRKB
  • 1.6 TDi 66 kW · 90 CV2013–2017DDYB, CLHB, CRKA, CXXA
  • 1.6 TDi 77 kW · 105 CV2013–2017CLHA
  • 1.6 TDi 4motion 77 kW · 105 CV2013–2017CLHA
  • 2.0 TDi 110 kW · 150 CV2013–2017CRBC, CRLB, DCYA
  • 2.0 TDi 4motion 110 kW · 150 CV2013–2017CRBC, CRLB, DCYA
GOLF VI (5K1)2
  • 1.4 TSI 90 kW · 122 CV2008–2012CAXA
  • 1.4 TSI 118 kW · 160 CV2008–2012CNWA, CAVD, CTHD
GOLF VII (5G1, BQ1, BE1, BE2)29
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.2 TSI 63 kW · 86 CV2012–2017CJZB, CYVA
  • 1.2 TSI 77 kW · 105 CV2012–2017CJZA
  • 1.2 TSI 81 kW · 110 CV2014–2017CYVB
  • 1.4 GTE Hybrid 150 kW · 204 CV2014–2020CUKB, DGEA
  • 1.4 TGI CNG 81 kW · 110 CV2013–2018CPWA, CZBA
  • 1.4 TSI 103 kW · 140 CV2012–2017CPTA, CHPA
  • 1.4 TSI 90 kW · 122 CV2012–2017CMBA, CXSA
  • 1.4 TSI 92 kW · 125 CV2014–2020CZCA
  • 1.4 TSI 110 kW · 150 CV2014–2021CZDA, CZEA
  • 1.4 TSI MultiFuel 90 kW · 122 CV2012–2017CPVA
  • 1.4 TSI MultiFuel 92 kW · 125 CV2013–2018CPVB
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
  • 1.6 81 kW · 110 CV2014–2017CWVA
  • 1.6 TDI 77 kW · 105 CV2012–2017CLHA
  • 1.6 TDI 66 kW · 90 CV2013–2018DDYB, CLHB, CRKA, CXXA
  • 1.6 TDI 81 kW · 110 CV2013–2017CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2016–2020DGTE, DDYA
  • 1.6 TDI 4motion 77 kW · 105 CV2012–2017CLHA
  • 1.6 TDI 4motion 81 kW · 110 CV2013–2017CXXB, CRKB
  • 2.0 R 4motion 206 kW · 280 CV2013–2017CJXB
  • 2.0 R 4motion 213 kW · 290 CV2016–2020DNUC, CJXD, DJHB
  • 2.0 TDI 110 kW · 150 CV2012–2020CRBC, DFGA, CRLB, DEJA, CRMB, CRUA, DCYA
  • 2.0 TDI 105 kW · 143 CV2012–2020CRVC, CRBB
  • 2.0 TDI 81 kW · 110 CV2012–2020DFGB, DCYB, CYKB, DEJB, CRVA
  • 2.0 TDI 4motion 110 kW · 150 CV2012–2020CRBC, DFGA, CRLB, CKFC, CRMB, DCYA
GOLF VII Van (5G1)7
  • 1.2 TSi 63 kW · 86 CV2012–2017CJZB
  • 1.2 TSi 77 kW · 105 CV2012–2017CJZA
  • 1.6 TDi 77 kW · 105 CV2012–2017CLHA
  • 1.6 TDi 66 kW · 90 CV2013–2017DDYB, CLHB, CRKA, CXXA
  • 1.6 TDi 81 kW · 110 CV2013–2017CXXB, CRKB
  • 2.0 TDi 110 kW · 150 CV2013–2014CRBC, CRLB, CKFC, DCYA
  • 2.0 TDi 4motion 110 kW · 150 CV2013–2014CRBC
GOLF VII Variant (BA5, BV5)26
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.2 TSI 63 kW · 86 CV2013–2017CJZB, CYVA
  • 1.2 TSI 77 kW · 105 CV2013–2020CJZA
  • 1.2 TSI 81 kW · 110 CV2014–2017CYVB
  • 1.4 TGI CNG 81 kW · 110 CV2013–2018CPWA
  • 1.4 TSI 90 kW · 122 CV2013–2017CXSA
  • 1.4 TSI 103 kW · 140 CV2013–2020CHPA
  • 1.4 TSI 92 kW · 125 CV2014–2020CZCA, CZDD
  • 1.4 TSI 110 kW · 150 CV2014–2021CZDA, CHPB
  • 1.4 TSI MultiFuel 90 kW · 122 CV2013–2017CPVA
  • 1.4 TSI MultiFuel 92 kW · 125 CV2014–2017CPVB
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
  • 1.6 81 kW · 110 CV2014–2017CWVA
  • 1.6 TDI 77 kW · 105 CV2013–2017CLHA
  • 1.6 TDI 66 kW · 90 CV2013–2018DDYB, CLHB, CRKA, CXXA
  • 1.6 TDI 81 kW · 110 CV2013–2017CXXB, DBKA, CRKB
  • 1.6 TDI 85 kW · 115 CV2016–2020DGTE, DDYA
  • 1.6 TDI 4motion 77 kW · 105 CV2013–2017CLHA
  • 1.6 TDI 4motion 81 kW · 110 CV2013–2017CXXB, CRKB
  • 2.0 R 4motion 206 kW · 280 CV2015–2017CJXB
  • 2.0 TDI 110 kW · 150 CV2013–2020CRBC, DFGA, CRLB, DEJA, CRUA, DCYA
  • 2.0 TDI 81 kW · 110 CV2013–2020DFGB, DCYB, CYKB, DEJB, CRLD, CRVA
  • 2.0 TDI 4motion 110 kW · 150 CV2013–2020CRBC, DFGA, CRLB, DCYA
