BREMBO

Disco freno

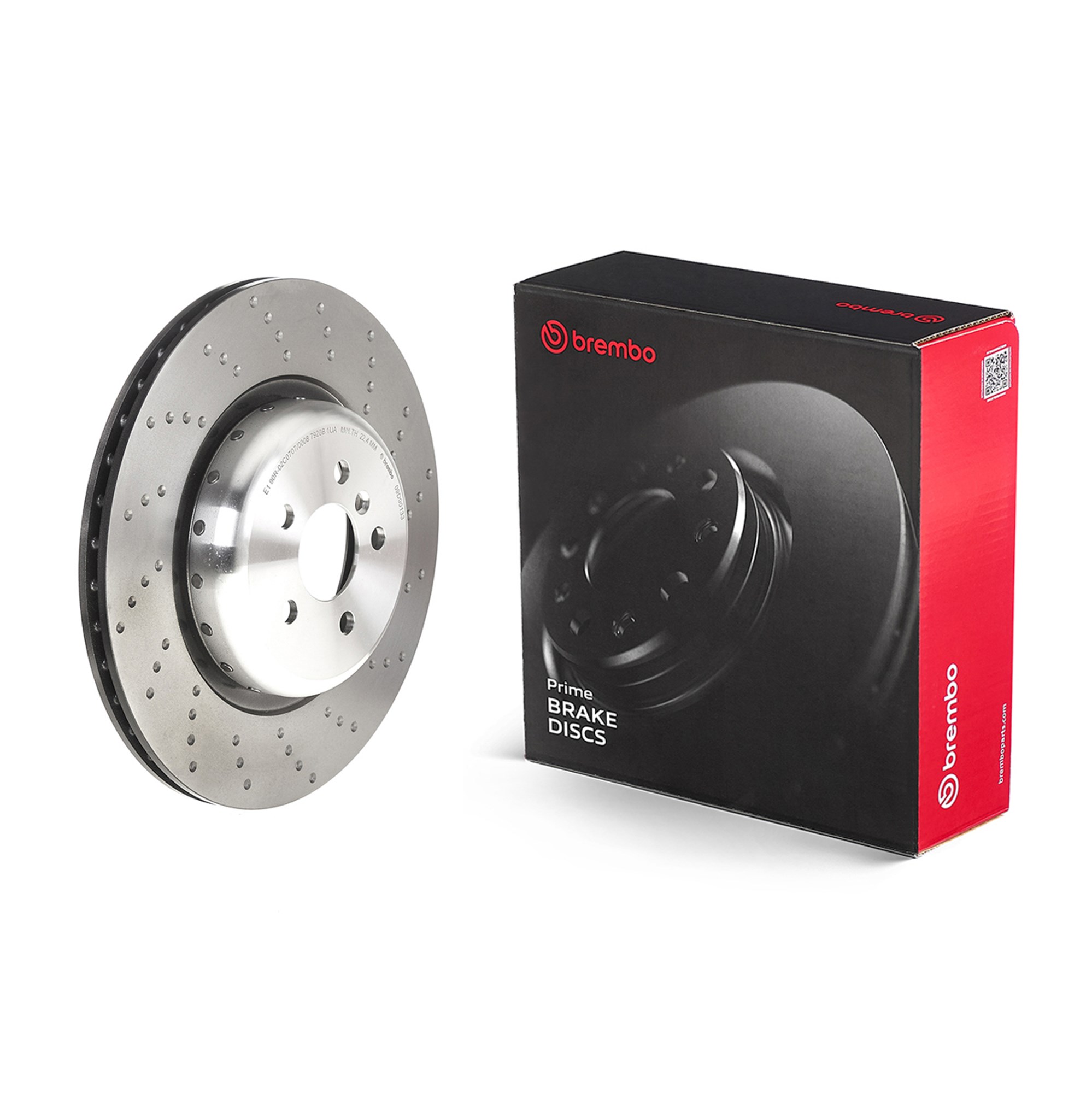

Name: Disco freno BREMBO 09D90133
Brand: BREMBO
SKU: BRM09D90133
Price: 262.20 EUR
Availability: OutOfStock

Codice 09D90133 · EAN 8020584238349

262,20 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua SEAT LEON (KL1, KLG) 1.0 TSI. Vedi i ricambi per la tua auto · auto compatibili

Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

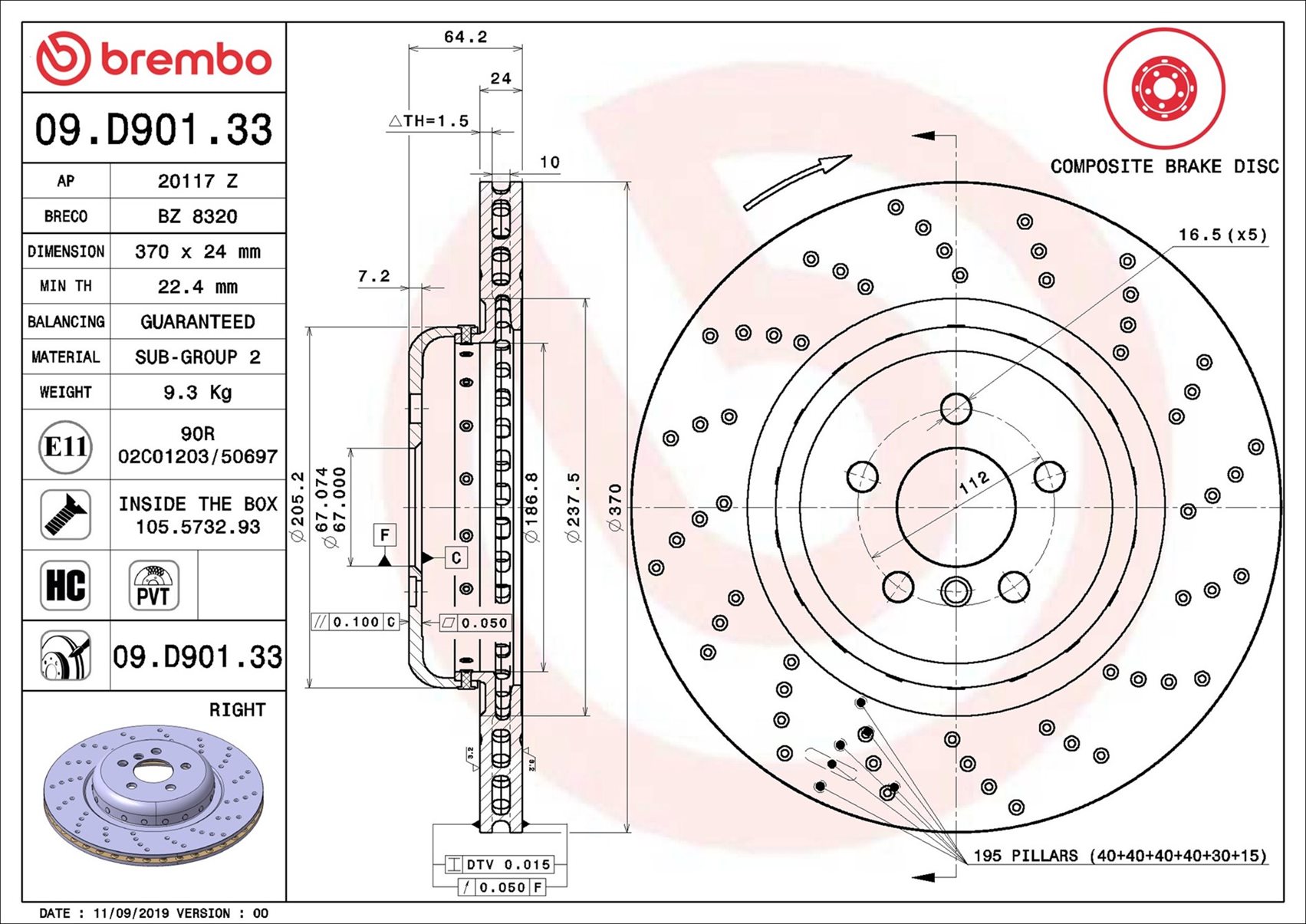

Caratteristiche

Tipo Disco Freno: PERFORATO/VENTILAZIONE INTERNADISCO DEL FRENO A DUE PEZZITAZZA DEL DISCO DEL FRENO IN ALLUMINIO
Informazione Breve: DISCO VENTILATO PVT. IL DISCO PVT UTILIZZA, IN CAMERA DIVENTILAZIONE, I PIOLI AL POSTO DELLE ALETTE. LA CAPACITÀ DIRAFFREDDAMENTO DEL DISCO MIGLIORA DI OLTRE IL 40% LARESISTENZA ALLE CRICCHE TERMICHE.
Spessore Disco Freno [Mm]: 24
N° Fori: 5
Articolo Complementare/Info Integrativa 2: CON BULLONI/VITI
Altezza [Mm]: 64
Diametro Centraggio [Mm]: 67
Diametro Esterno [Mm]: 370
Lavorazione/Trattamento: AD ALTO TENORE DI CARBONIO
Superficie: RIVESTITO
N° Articolo Appaiato: 09.D901.23
Spessore Min. [Mm]: 22,4

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

34216878180 BMW

Auto compatibili

144 versioni di 5 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

Cerca la tua auto

BMW144 versioni

5 (G30, F90)54

518 d 100 kW · 136 CV2018–2020B47 D20 B
518 d 110 kW · 150 CV2018–2020B47 D20 B
518 d Mild-Hybrid 100 kW · 136 CV2020–2023B47 D20 B, JA1
518 d Mild-Hybrid 110 kW · 150 CV2020–2023B47 D20 B, JA1
520 E PLUG-IN-HYBRID 150 kW · 204 CV2021–2022B48 B20 A, GC1
520 d 140 kW · 190 CV2016–2023B47 D20 A, B47 D20 B
520 d 120 kW · 163 CV2016–2023B47 D20 A, B47 D20 B
520 d Mild-Hybrid 140 kW · 190 CV2019–2023B47 D20 B, JA1
520 d Mild-Hybrid 120 kW · 163 CV2019–2023B47 D20 B, JA1
520 d Mild-Hybrid xDrive 140 kW · 190 CV2019–2023B47 D20 B, JA1
520 d xDrive 140 kW · 190 CV2016–2023B47 D20 A, B47 D20 B
520 d xDrive 120 kW · 163 CV2016–2023B47 D20 A, B47 D20 B
520 i 135 kW · 184 CV2017–oggiB46 B20 B, B48 B20 B, B48 B20 A
520 i 125 kW · 170 CV2017–2023B48 B16 A
520 i 120 kW · 163 CV2017–2020B48 B20 B, B48 B20 A
520 i 155 kW · 211 CV2017–2020B48 B20 B, B48 B20 A
520 i Mild-Hybrid 135 kW · 184 CV2020–2023JA1, B48 B20 A
520 i Mild-Hybrid 120 kW · 163 CV2020–2023JA1, B48 B20 A
525 d 170 kW · 231 CV2017–2019B47 D20 B
525 d 155 kW · 211 CV2017–2019B47 D20 B
530 d 195 kW · 265 CV2016–2020B57 D30 A
530 d Mild-Hybrid 210 kW · 286 CV2020–2023B57 D30 B, JA1
530 d Mild-Hybrid 183 kW · 249 CV2020–2023B57 D30 B, JA1
530 d Mild-Hybrid xDrive 210 kW · 286 CV2020–2023B57 D30 B, JA1
530 d Mild-Hybrid xDrive 183 kW · 249 CV2020–2023B57 D30 B, JA1
530 d xDrive 195 kW · 265 CV2016–2020B57 D30 A
530 d xDrive 183 kW · 249 CV2016–2020B57 D30 A
530 e Plug-in Hybrid 185 kW · 252 CV2017–2020B46 B20 B, B48 B20 A, GC1
530 e Plug-in-Hybrid 170 kW · 231 CV2019–2020B48 B20 A, GC1
530 e Plug-in-Hybrid 215 kW · 292 CV2020–2023B46 B20 B, B48 B20 A, GC1
530 e Plug-in-Hybrid 200 kW · 272 CV2020–2023B48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 185 kW · 252 CV2017–2023B46 B20 B, B48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 170 kW · 231 CV2019–2023B48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 215 kW · 292 CV2020–2023B48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 200 kW · 272 CV2020–2023B48 B20 A, GC1
530 i 185 kW · 252 CV2016–2020B46 B20 B, B48 B20 B
530 i 180 kW · 245 CV2022–2023B46 B20 B, B48 B20 B
530 i Mild-Hybrid 185 kW · 252 CV2020–2023B48 B20 B, JA1
530 i Mild-Hybrid xDrive 185 kW · 252 CV2020–2023B48 B20 B, JA1
530 i xDrive 185 kW · 252 CV2016–2020B46 B20 B, B48 B20 B
530 i xDrive 183 kW · 249 CV2016–2023B48 B20 B
530 i xDrive 180 kW · 245 CV2022–2023B46 B20 B, B48 B20 B
540 d Mild-Hybrid xDrive 250 kW · 340 CV2020–2023B57 D30 B, JA1
540 d xDrive 235 kW · 320 CV2017–2020B57 D30 A, B57 D30 B
540 i 250 kW · 340 CV2016–2020B58 B30 A, B58 B30 C
540 i 265 kW · 360 CV2016–2020B58 B30 A
540 i Mild-Hybrid 245 kW · 333 CV2020–2023JA1, B58 B30 C
540 i Mild-Hybrid xDrive 245 kW · 333 CV2020–2023JA1, B58 B30 C
540 i xDrive 250 kW · 340 CV2016–2020B58 B30 A, B58 B30 C
540 i xDrive 265 kW · 360 CV2016–2020B58 B30 A
545 e Plug-in-Hybrid xDrive 290 kW · 394 CV2020–2023GC1, B58 B30 C
M 550 d xDrive 294 kW · 400 CV2017–2020B57 D30 C
M 550 i xDrive 340 kW · 462 CV2017–2019N63 B44 C
M 550 i xDrive 390 kW · 530 CV2019–2023N63 B44 D

5 Touring (G31)43

518 d 110 kW · 150 CV2018–2020B47 D20 B
518 d 100 kW · 136 CV2018–2020B47 D20 B
518 d Mild-Hybrid 100 kW · 136 CV2020–oggiB47 D20 B, JA1
518 d Mild-Hybrid 110 kW · 150 CV2020–oggiB47 D20 B, JA1
520 E PLUG-IN-HYBRID 150 kW · 204 CV2021–2022B48 B20 A, GC1
520 d 140 kW · 190 CV2017–oggiB47 D20 A, B47 D20 B
520 d 120 kW · 163 CV2017–oggiB47 D20 A, B47 D20 B
520 d Mild-Hybrid 140 kW · 190 CV2019–oggiB47 D20 B, JA1
520 d Mild-Hybrid 120 kW · 163 CV2019–oggiB47 D20 B, JA1
520 d Mild-Hybrid xDrive 140 kW · 190 CV2019–oggiB47 D20 B, JA1
520 d xDrive 140 kW · 190 CV2017–oggiB47 D20 A, B47 D20 B
520 d xDrive 120 kW · 163 CV2017–oggiB47 D20 A, B47 D20 B
520 i 135 kW · 184 CV2017–2020B48 B20 A
520 i 120 kW · 163 CV2017–2020B48 B20 A
520 i 155 kW · 211 CV2017–2020B48 B20 A
520 i Mild-Hybrid 135 kW · 184 CV2020–oggiJA1, B48 B20 A
520 i Mild-Hybrid 120 kW · 163 CV2020–oggiJA1, B48 B20 A
525 d 170 kW · 231 CV2017–2019B47 D20 B
525 d 155 kW · 211 CV2017–2019B47 D20 B
530 d 195 kW · 265 CV2017–2020B57 D30 A
530 d Mild-Hybrid 210 kW · 286 CV2020–oggiB57 D30 B, JA1
530 d Mild-Hybrid 183 kW · 249 CV2020–oggiB57 D30 B, JA1
530 d Mild-Hybrid xDrive 210 kW · 286 CV2020–oggiB57 D30 B, JA1
530 d Mild-Hybrid xDrive 183 kW · 249 CV2020–oggiB57 D30 B, JA1
530 d xDrive 195 kW · 265 CV2017–2020B57 D30 A
530 e Plug-in-Hybrid 215 kW · 292 CV2020–oggiB48 B20 A, GC1
530 e Plug-in-Hybrid 200 kW · 272 CV2020–oggiB48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 215 kW · 292 CV2020–oggiB48 B20 A, GC1
530 e Plug-in-Hybrid xDrive 200 kW · 272 CV2020–oggiB48 B20 A, GC1
530 i 185 kW · 252 CV2017–2020B48 B20 B
530 i 180 kW · 245 CV2022–oggiB48 B20 B
530 i Mild-Hybrid 185 kW · 252 CV2020–oggiB48 B20 B, JA1
530 i Mild-Hybrid 180 kW · 245 CV2022–oggiB48 B20 B
530 i Mild-Hybrid xDrive 185 kW · 252 CV2020–oggiB48 B20 B, JA1
530 i Mild-Hybrid xDrive 180 kW · 245 CV2022–oggiB48 B20 B
530 i xDrive 185 kW · 252 CV2017–2020B48 B20 B
530 i xDrive 180 kW · 245 CV2022–oggiB48 B20 B
540 d Mild-Hybrid xDrive 250 kW · 340 CV2020–oggiB57 D30 B, JA1
540 d xDrive 235 kW · 320 CV2017–2020B57 D30 B
540 i Mild-Hybrid xDrive 245 kW · 333 CV2020–oggiJA1, B58 B30 C
540 i xDrive 250 kW · 340 CV2017–2020B58 B30 A
540 i xDrive 265 kW · 360 CV2017–2020B58 B30 A
M 550 d xDrive 294 kW · 400 CV2017–oggiB57 D30 C

5 Touring Van (G31)7

520 d 140 kW · 190 CV2017–2019B47 D20 A, B47 D20 B
520 d xDrive 140 kW · 190 CV2017–2019B47 D20 A, B47 D20 B
520 i 135 kW · 184 CV2017–oggiB48 B20 A
530 d 195 kW · 265 CV2017–oggiB57 D30 A
530 d xDrive 195 kW · 265 CV2017–oggiB57 D30 A
540 d xDrive 235 kW · 320 CV2017–oggiB57 D30 B
540 i xDrive 250 kW · 340 CV2017–oggiB58 B30 A

6 Gran Turismo (G32)28

620 d 140 kW · 190 CV2018–2020B47 D20 B
620 d 120 kW · 163 CV2018–2020B47 D20 B
620 d Mild-Hybrid 140 kW · 190 CV2020–oggiB47 D20 B, JA1
620 d Mild-Hybrid 120 kW · 163 CV2020–oggiB47 D20 B, JA1
620 d Mild-Hybrid xDrive 140 kW · 190 CV2020–oggiB47 D20 B, JA1
620 d xDrive 140 kW · 190 CV2018–2020B47 D20 B
620 d xDrive 120 kW · 163 CV2018–2020B47 D20 B
630 d 195 kW · 265 CV2017–2020B57 D30 A
630 d 155 kW · 211 CV2017–2020B57 D30 A
630 d Mild-Hybrid 210 kW · 286 CV2020–oggiB57 D30 B, JA1
630 d Mild-Hybrid 155 kW · 211 CV2020–oggiB57 D30 B, JA1
630 d Mild-Hybrid xDrive 210 kW · 286 CV2020–oggiB57 D30 B, JA1
630 d xDrive 195 kW · 265 CV2017–2020B57 D30 A
630 d xDrive 155 kW · 211 CV2017–2020B57 D30 A
630 d xDrive 183 kW · 249 CV2017–2020B57 D30 A
630 i 190 kW · 258 CV2017–2020B48 B20 B
630 i 183 kW · 249 CV2017–2020B48 B20 B
630 i Mild-Hybrid 190 kW · 258 CV2020–oggiB48 B20 B, JA1
630 i Mild-Hybrid 180 kW · 245 CV2020–oggiB48 B20 B
630 i xDrive 190 kW · 258 CV2019–oggiB58 B30 C
640 d Mild-Hybrid xDrive 250 kW · 340 CV2020–oggiB57 D30 B, JA1
640 d xDrive 235 kW · 320 CV2017–2020B57 D30 B
640 i 250 kW · 340 CV2017–2020B58 B30 A, B58 B30 C
640 i 265 kW · 360 CV2017–2020B58 B30 A, B58 B30 C
640 i Mild-Hybrid 245 kW · 333 CV2020–oggiJA1, B58 B30 C
640 i Mild-Hybrid xDrive 245 kW · 333 CV2020–oggiJA1, B58 B30 C
640 i xDrive 250 kW · 340 CV2017–2020B58 B30 A, B58 B30 C
640 i xDrive 265 kW · 360 CV2017–2020B58 B30 A, B58 B30 C

7 (G11, G12)12

725 d, Ld 170 kW · 231 CV2016–2019B47 D20 B
725 d, Ld 155 kW · 211 CV2016–2019B47 D20 B
730 d, Ld xDrive 183 kW · 249 CV2015–2020B57 D30 A
730 i 183 kW · 249 CV2015–2022B48 B20 B
730 i, Li 190 kW · 258 CV2015–2019B48 B20 B
730 i, Li 195 kW · 265 CV2019–2022B48 B20 B
740 Li xDrive 250 kW · 340 CV2019–2022B58 B30 C
740 Li xDrive 245 kW · 333 CV2019–2022B58 B30 C
740 i, Li 250 kW · 340 CV2019–2022B58 B30 C
745 Le Plug-in-Hybrid xDrive 290 kW · 394 CV2019–2022B58 B30 C
745 e, Le Plug-in-Hybrid 290 kW · 394 CV2019–2022B58 B30 C
750 i, Li xDrive 390 kW · 530 CV2019–2022N63 B44 D
