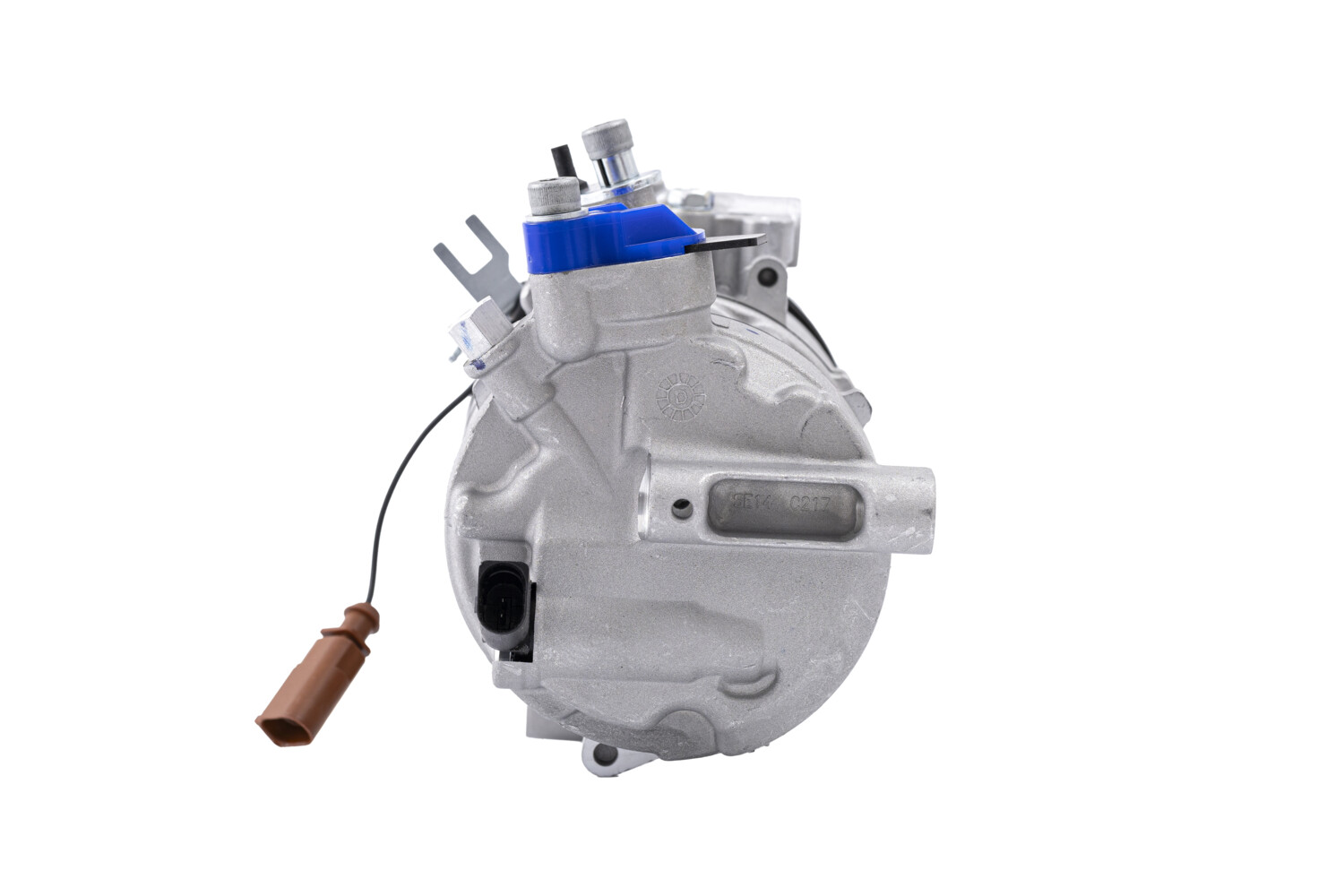

Compressore, climatizzatore HELLA 8FK366200-481
HELLA
HELLA

Compressore, climatizzatore

Codice 8FK366200-481 · EAN 4069842006515

282,29 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua CITROEN VISA 11 E. Vedi i ricambi per la tua auto · auto compatibili
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

Caratteristiche

Informazione Tecnica
PRECARICATO CON IL TIPO DI OLIO CORRETTO. IL VOLUME DI RIEMPIMENTO DEVE ESSERE CALIBRATO CON PRECISIONE PER SODDISFARE IREQUISITI FUNZIONALI E TERMICI DELL'APPLICAZIONE DI DESTINAZIONE.
Limitazione Costruttore
DENSO/MAHLE/SANDEN
Informazione Breve

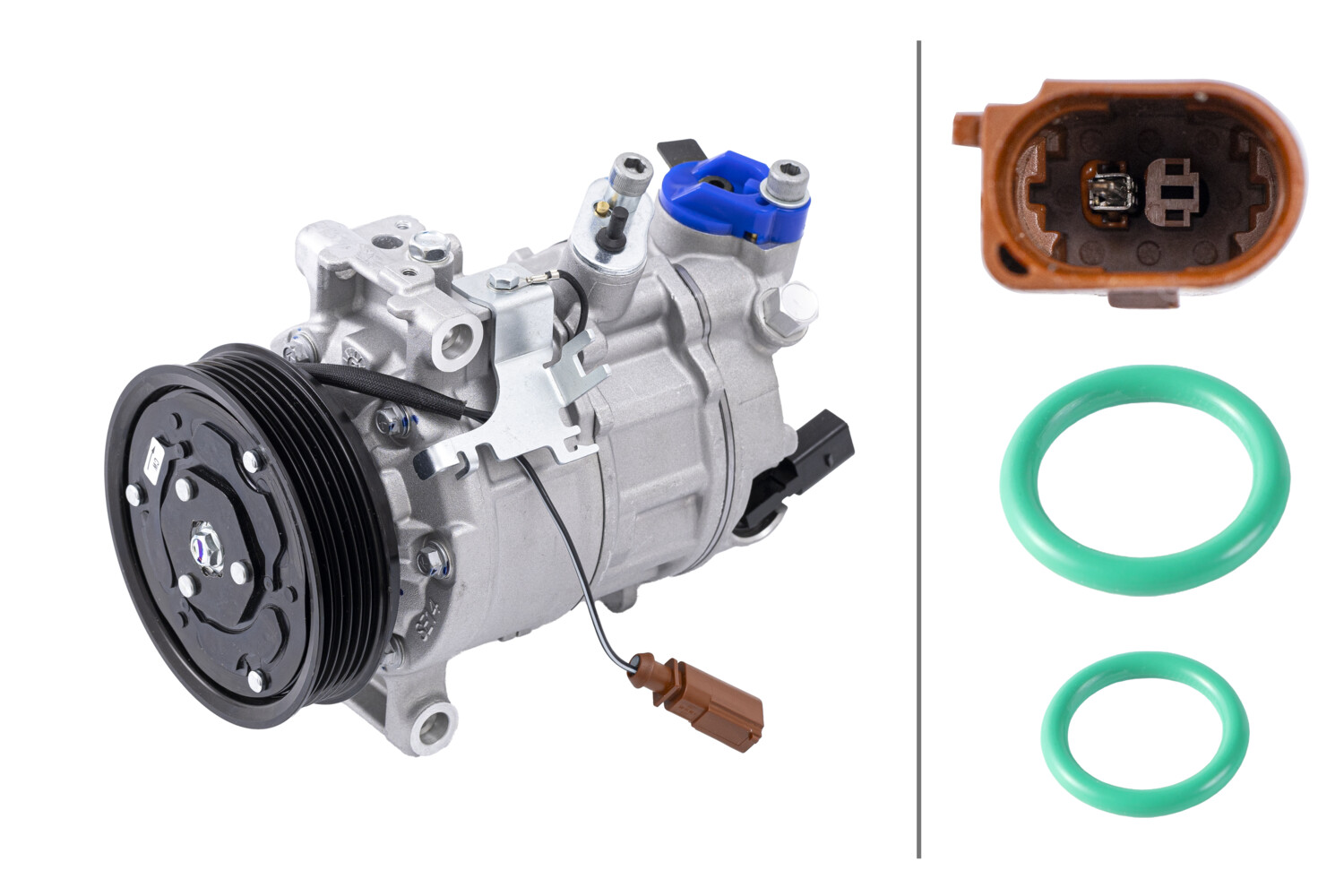

EASY2FIT - I MATERIALI DI INSTALLAZIONE, QUALI GUARNIZIONI,O-RING, BULLONI, CLIP E ALTRI ACCESSORI, SONO INCLUSI SE NECESSARI.
Id Compressore
6SAS14C/6CVC/PXC14
Tensione [V]
12
Articolo Complementare/Info Integrativa 2
CON INNESTO ELETTROMAGNETICOCON ANELLO TENUTACON OLIO COMPRESSORE-PAG
Puleggia
CON PULEGGIA CINGHIA POLY-V
N° Scanalature
6
Puleggia -Ø [Mm]
110
Entrata-Ø [Mm]
28
Uscita-Ø [Mm]
15
Refrigerante
R 134AR 1234YF
Olio Compressore
PAG 46 YF
Capacità Olio [Ml]
100

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

355 versioni di 63 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

AUDI71 versioni
A1 Allstreet (GBH)4
  • 25 TFSI 70 kW · 95 CV2022–oggiDLAC
  • 30 TFSI 81 kW · 110 CV2022–oggiDLAA
  • 30 TFSI 85 kW · 116 CV2024–oggiDUSA
  • 35 TFSI 110 kW · 150 CV2022–oggiDXDB, DPCA
A1 City Carver (GBH)4
  • 25 TFSI 70 kW · 95 CV2019–2022DKLA
  • 30 TFSI 85 kW · 116 CV2019–2022DKJA, DKRF
  • 30 TFSI 81 kW · 110 CV2020–2022DLAA
  • 35 TFSI 110 kW · 150 CV2019–2022DPCA
A1 Sportback (GBA)5
  • 25 TFSI 70 kW · 95 CV2018–oggiDKLA, DUSB, DLAC
  • 30 TFSI 85 kW · 116 CV2018–oggiDKJA, DKRF, DUSA
  • 30 TFSI 81 kW · 110 CV2020–oggiDLAA
  • 35 TFSI 110 kW · 150 CV2018–oggiDXDB, DPCA, DADA
  • 40 TFSI 152 kW · 207 CV2021–oggiDNND
A3 Allstreet (8YJ)3
A3 Limousine (8YS, 8YM)11
A3 Sportback (8YA, 8YF)12
Q2 (GAB, GAG)14
Q3 (F3B)7
Q3 (FJB)4
Q3 Sportback (F3N)7
CUPRA29 versioni
ATECA (KH7, KHP, KBP)3
FORMENTOR (KM7, KMP)10
LEON (KL1, KU1, KUG)5
  • 1.5 TSI 110 kW · 150 CV2022–oggiDXDB, DPCA
  • 2.0 TDI 110 kW · 150 CV2022–oggiDTTA, DTTC, DXRB
  • 2.0 TSI 180 kW · 245 CV2021–oggiDNPA
  • 2.0 TSI 140 kW · 190 CV2022–oggiDNNA
  • 2.0 TSI VZ 221 kW · 300 CV2021–oggiDNFC
LEON Sportstourer (KL8, KU8, KUD)9
TERRAMAR (KP1)2
SEAT39 versioni
ARONA (KJ7, KJP)7
  • 1.0 TGi 66 kW · 90 CV2018–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2017–oggiDUSB, CHZL, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2017–oggiDUSA, DKJA, DXUA, DKRF, CHZJ
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.6 SRE 81 kW · 110 CV2017–oggiCWVA
  • 1.6 TDI 85 kW · 115 CV2017–oggiDGTA
  • 1.6 TDI 70 kW · 95 CV2017–oggiDGTD
ATECA (KH7, KHP)1
IBIZA V (KJ1, KJG)11
  • 1.0 MPi 55 kW · 75 CV2017–oggiCHYB
  • 1.0 MPi 48 kW · 65 CV2017–oggiDFNB, CHYC
  • 1.0 MPi 59 kW · 80 CV2018–oggiDSGB, DFNA, DSGD
  • 1.0 TGI 66 kW · 90 CV2017–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2017–oggiDUSB, CHZL, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2017–oggiDUSA, DKJA, DKRF, CHZJ
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.6 SRE 81 kW · 110 CV2017–oggiCWVA
  • 1.6 TDI 70 kW · 95 CV2017–oggiDGTD
  • 1.6 TDI 59 kW · 80 CV2017–oggiDGTC
  • 1.6 TDI 85 kW · 115 CV2017–oggiDGTA
LEON (KL1, KLG)10
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.5 TGI CNG 96 kW · 131 CV2020–oggiDHFA
  • 1.5 TSI 96 kW · 131 CV2019–oggiDPBA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
  • 1.5 TSI 85 kW · 116 CV2024–oggiDXDE
  • 2.0 TDI 85 kW · 116 CV2019–oggiDTRD, DXRC, DSUD
  • 2.0 TDI 110 kW · 150 CV2019–oggiDSTB, DXRB, DTTA, DTTC
  • 2.0 TDI 105 kW · 143 CV2021–oggiCRVC
  • 2.0 TFSI 140 kW · 190 CV2021–oggiCZPB, DNNA
LEON Sportstourer (KL8, KLD)10
  • 1.0 TSI 66 kW · 90 CV2020–oggiDLAB
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TGi 96 kW · 131 CV2021–oggiDHFA
  • 1.5 TSI 96 kW · 131 CV2020–oggiDPBA
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DXDB
  • 1.5 TSI 85 kW · 116 CV2024–oggiDXDE
  • 2.0 TDI 110 kW · 150 CV2020–oggiDSTB, DXRB, DTTA, DTTC
  • 2.0 TDI 85 kW · 116 CV2020–oggiDTRD, DXRC
  • 2.0 TDI 4Drive 110 kW · 150 CV2020–oggiDTTC
  • 2.0 TFSI 140 kW · 190 CV2021–oggiDNNA
SKODA78 versioni
FABIA III (NJ3)4
  • 1.0 44 kW · 60 CV2014–2021CHYE, CHYA
  • 1.0 55 kW · 75 CV2014–2021CHYB
  • 1.0 TSI 70 kW · 95 CV2014–2021CHZB, DKLD
  • 1.0 TSI 81 kW · 110 CV2014–2021DKRC, CHZC
FABIA III Familiare (NJ5)4
  • 1.0 55 kW · 75 CV2014–2022CHYB
  • 1.0 44 kW · 60 CV2014–2022CHYE, CHYA
  • 1.0 TSI 70 kW · 95 CV2014–2022CHZB, DKLD
  • 1.0 TSI 81 kW · 110 CV2014–2022DKRC, CHZC
FABIA III Praktik (NJ5)2
  • 1.0 44 kW · 60 CV2014–2022CHYA
  • 1.0 55 kW · 75 CV2014–2022CHYB
FABIA IV (PJ3)6
  • 1.0 MPI 59 kW · 80 CV2021–oggiDSGD
  • 1.0 MPI 48 kW · 65 CV2021–oggiDSGA
  • 1.0 TSI 81 kW · 110 CV2021–oggiDLAA
  • 1.0 TSI 70 kW · 95 CV2021–oggiDUSB, DLAC
  • 1.0 TSI 85 kW · 116 CV2024–oggiDUSA
  • 1.5 TSI 110 kW · 150 CV2021–oggiDPCA, DXDB
KAMIQ (NW4)5
  • 1.0 TGI CNG 66 kW · 90 CV2019–oggiDBYA
  • 1.0 TSI 70 kW · 95 CV2019–oggiDUSB, DKLA, DLAC
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKJA, DKRF, DUSA, DXUA
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DADA, DXDB
KODIAQ I (NS6, NS7, NV7)4
KODIAQ II (PS7)6
OCTAVIA IV (NX3, NN3, PV3)15
OCTAVIA IV Combi (NX5, PV5)15
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
  • 1.5 TSI 85 kW · 116 CV2024–oggiDXDE
  • 1.5 TSI G-TEC 96 kW · 131 CV2020–oggiDHFA
  • 1.5 eTSI 85 kW · 116 CV2024–oggiDXDE
  • 2.0 RS 195 kW · 265 CV2024–oggiDNPD
  • 2.0 TDI 85 kW · 116 CV2019–oggiDXRC, DSUD, DTRB, DTRD
  • 2.0 TDI 110 kW · 150 CV2019–oggiDTTA, DSTB, DXRB, DTTC
  • 2.0 TDI 105 kW · 143 CV2020–oggiCRVC
  • 2.0 TDI 4x4 110 kW · 150 CV2020–oggiDTTA, DTTC
  • 2.0 TDI RS 147 kW · 200 CV2020–oggiDTUA
  • 2.0 TDI RS 4x4 147 kW · 200 CV2020–oggiDTUA
  • 2.0 TSI 4x4 140 kW · 190 CV2020–oggiDNNA
  • 2.0 TSI 4x4 150 kW · 204 CV2025–oggiDNNE
  • 2.0 TSI RS 180 kW · 245 CV2020–oggiDLBA, DNPA
SCALA (NW1)4
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKJA, DKRF, DUSA, DXUA
  • 1.0 TSI 70 kW · 95 CV2019–oggiDUSB, DKLA, DLAC
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DADA, DXDB
SUPERB III (3V3)2
  • 1.5 TSI 110 kW · 150 CV2017–2024DPCA, DADA
  • 1.6 TDI 88 kW · 120 CV2015–2024DCZA, DCXA
SUPERB III Familiare (3V5)3
  • 1.5 TSi 110 kW · 150 CV2015–2024DPCA, DADA
  • 1.6 TDI 88 kW · 120 CV2015–2024DCZA, DCXA
  • 2.0 TDI 90 kW · 122 CV2020–2024DTRA
SUPERB IV (NZ3)4
SUPERB IV Familiare (NZ5)4
VOLKSWAGEN138 versioni
ARTEON (3H7, 3H8)4
  • 1.5 TSI 110 kW · 150 CV2017–oggiDPCA, DADA
  • 2.0 TDI 110 kW · 150 CV2017–oggiDSRB, DBGA, DXPA, DFGA, DTSA, DTSB, DSRA
  • 2.0 TDI 147 kW · 200 CV2020–oggiDTUA
  • 2.0 TDI 4motion 147 kW · 200 CV2020–oggiDTUA
ARTEON SHOOTING BRAKE (3H9)5
CADDY CALIFORNIA V Camper (SBB, SBJ)6
CADDY V Cassone/Limousine spaziosa (SBA, SBH)7
CADDY V MPV / Space wagon (SBB, SBJ)7
CALIFORNIA T6 Camper (SGC, SGG, SHC)1
  • 2.0 TDI 81 kW · 110 CV2019–2024CXHC, DNAB
GOLF ALLTRACK VIII (CG5)2
GOLF SPORTSVAN VII (AM1, AN1)4
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
GOLF VII (5G1, BQ1, BE1, BE2)6
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.5 TGI 96 kW · 130 CV2018–2020DHFA
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
GOLF VIII (CD1, DA1)18
GOLF VIII Variant (CG5, DB5)14
GOLF VII Variant (BA5, BV5)6
  • 1.0 TSI 85 kW · 115 CV2015–2020DKRF, CHZD
  • 1.0 TSI 81 kW · 110 CV2016–2020CHZC
  • 1.0 TSI 63 kW · 86 CV2017–2019DKLB, CHZK
  • 1.5 TGI 96 kW · 131 CV2018–2020DHFA
  • 1.5 TSI 110 kW · 150 CV2017–2020DPCA, DADA
  • 1.5 TSI 96 kW · 130 CV2017–2020DPBA, DACA
MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)1
  • 2.0 TDI 81 kW · 110 CV2019–2024CXHC, DNAB
PASSAT B8 (3G2, CB2)3
  • 1.5 TSI 110 kW · 150 CV2018–2024DPCA, DADA
  • 1.6 TDI 88 kW · 120 CV2014–2020DCXA, DCZA
  • 2.0 TDI 110 kW · 150 CV2014–2024DSRB, DBGA, DFGA, DTSA, CRLB, DTSB, DSRA
PASSAT B8 Variant (3G5, CB5)3
  • 1.5 TSI 110 kW · 150 CV2018–2024DPCA, DADA
  • 1.6 TDI 88 kW · 120 CV2014–2020DCXA, DCZA
  • 2.0 TDI 110 kW · 150 CV2014–2024DSRB, DBGA, DFGA, DTSA, CRLB, DTSB, DSRA
PASSAT B9 Variant (CJ5)5
POLO VI (AW1, BZ1, AE1)2
  • 1.0 TSI 70 kW · 95 CV2017–oggiDKLA, DUSB, CHZL, DXTA, DLAC
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
T-CROSS (C11, D31)3
  • 1.0 TSI 81 kW · 110 CV2020–oggiDLAA
  • 1.0 TSi 70 kW · 95 CV2018–oggiDKLA, DUSB, CHZL, DXTA, DLAC
  • 1.5 TSI 110 kW · 150 CV2020–oggiDPCA, DADA, DXDB
T-ROC (A11, D11)2
T-ROC Cabriolet (AC7, AC8)2
  • 1.0 TSI 85 kW · 116 CV2019–oggiDKRF, DUSA
  • 1.5 TSI 110 kW · 150 CV2019–oggiDPCA, DXDB
TAIGO (CS1)4
  • 1.0 TSI 70 kW · 95 CV2021–oggiDUSB, DXTA, DLAC
  • 1.0 TSI 81 kW · 110 CV2021–2024DLAA
  • 1.0 TSI 85 kW · 116 CV2021–oggiDUSA, DXUA
  • 1.5 TSI 110 kW · 150 CV2021–oggiDPCA, DXDB
TAYRON (R41)4
TIGUAN (CT1)4
TIGUAN ALLSPACE (BW2, BJ2)11
TOURAN (5T1)3
  • 1.5 TSI 110 kW · 150 CV2018–oggiDPCA, DADA, DXDB
  • 2.0 TDI 110 kW · 150 CV2015–oggiDFEA, DXPA, DFGA, DTSB
  • 2.0 TDI 90 kW · 122 CV2020–oggiDTRC, DXRA
TOURAN Cassone/Limousine spaziosa (5T1)2
  • 2.0 TDI 110 kW · 150 CV2015–oggiDFEA, DFGA, DTSB
  • 2.0 TDI 90 kW · 122 CV2020–oggiDTRC, DXRA
TRANSPORTER T6 / CARAVELLE T6 Autobus (SGB, SGJ, SHB, SHJ)2
  • 2.0 TDI 81 kW · 110 CV2019–2024CXHC, DNAB
  • 2.0 TDI 66 kW · 90 CV2019–2024DNAC, CXGD
TRANSPORTER T6 Furgone (SGA, SGH, SHA, SHH)3
  • 2.0 TDI 66 kW · 90 CV2019–2024DNAC, CXGD
  • 2.0 TDI 146 kW · 199 CV2019–2024CXEC
  • 2.0 TDI 81 kW · 110 CV2019–2024CXHC, DNAB
TRANSPORTER T6 Pianale piatto/Telaio (SFD, SFE, SFL, SFZ, SJ4
