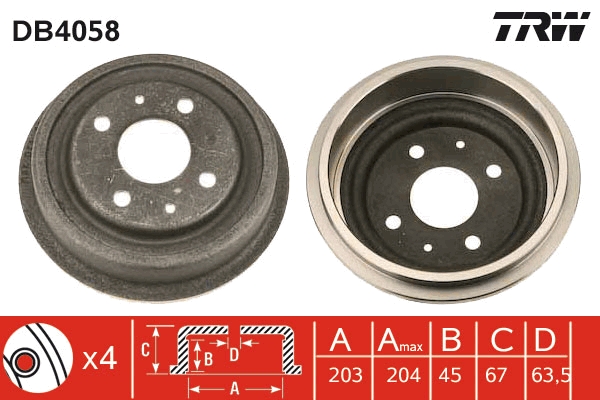

Tamburo freno TRW DB4058
TRW
TRW

Tamburo freno

Codice DB4058 · EAN 3322937075331

42,19 €

IVA inclusa

Verifica la compatibilità scegliendo la tua auto, oppure indica targa o telaio nell'ordine: controlliamo prima di spedire.
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

Caratteristiche

Altezza Totale Tamb. Freno [Mm]
67
Diametro Centraggio [Mm]
63,5
Diam. Tamburo Freno Esterno [Mm]
217
Diametro Tamburo
203
Misura Mass. Scorrim. Tamburo Freno [Mm]
204
Altezza Interna Tamb. Freno [Mm]
45
N° Fori
4
Foro Interno-Ø [Mm]
108

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

148 versioni di 38 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

FORD148 versioni
1.31
  • 1.3 40 kW · 54 CV1976–1979JAC
1.61
  • 1.6 50 kW · 68 CV1976–1979LAD
12002
  • 1200 35 kW · 48 CV1962–1966HB
  • 1200 34 kW · 46 CV1962–1966HA
13005
  • 1300 40 kW · 54 CV1966–1972KL 13 H
  • 1300 37 kW · 50 CV1966–1972KL 13 L
  • 1300 40 kW · 54 CV1970–1976JA
  • 1300 35 kW · 48 CV1970–1972KL 13 L
  • 1300 42 kW · 57 CV1970–1972KL 13 H
15001
  • 1500 43 kW · 58 CV1962–1966KA
16002
  • 1600 53 kW · 72 CV1970–1976LA
  • 1600 50 kW · 68 CV1970–1972OHV KL 16 L
1600 GT3
  • 1600 GT 60 kW · 82 CV1967–1970KL 16 G
  • 1600 GT 63 kW · 86 CV1970–1972LCJ
  • 1600 GT 63 kW · 86 CV1970–1972KL 16 G
CAPRI I (ECJ)10
  • 1300 37 kW · 50 CV1968–1972EV 13 L
  • 1300 39 kW · 53 CV1971–1972EV 13 H
  • 1300 41 kW · 57 CV1971–1973KL 13 L
  • 1300 39 kW · 54 CV1971–1973KL 13 L
  • 1300 40 kW · 55 CV1972–1973JA
  • 1300 53 kW · 72 CV1972–1972KL 13 HC
  • 1300 43 kW · 59 CV1973–1973JCE
  • 1500 44 kW · 60 CV1968–1974EX
  • 1500 48 kW · 65 CV1968–1974EV 15 H
  • 1700 55 kW · 75 CV1968–1972TV 17 H
CAPRI II (GECP)2
  • 1.3 40 kW · 54 CV1974–1977J1E
  • 1.3 42 kW · 57 CV1974–1977J1E
CAPRI III (GECP)2
  • 1.3 40 kW · 54 CV1978–1985J1E
  • 1.6 54 kW · 73 CV1978–1987LCN
CORTINA13
  • 1200 35 kW · 48 CV1962–1966HB
  • 1200 34 kW · 46 CV1962–1966HA
  • 1300 40 kW · 54 CV1966–1972KL 13 H
  • 1300 37 kW · 50 CV1966–1972KL 13 L
  • 1300 35 kW · 48 CV1970–1972KL 13 L
  • 1300 42 kW · 57 CV1970–1972KL 13 H
  • 1500 43 kW · 58 CV1962–1966KA
  • 1600 45 kW · 62 CV1970–1972OHV KL 16 L
  • 1600 50 kW · 68 CV1970–1972OHV KL 16 L
  • 1600 GT 60 kW · 82 CV1967–1970KL 16 G
  • 1600 GT 63 kW · 86 CV1970–1972LCJ
  • 1600 GT 63 kW · 86 CV1970–1972KL 16 G
  • GT 56 kW · 76 CV1962–1966
CORTINA Estate12
  • 1200 35 kW · 48 CV1962–1966HB
  • 1200 34 kW · 46 CV1962–1966HA
  • 1300 40 kW · 54 CV1966–1972KL 13 H
  • 1300 37 kW · 50 CV1966–1972KL 13 L
  • 1300 35 kW · 48 CV1970–1972KL 13 L
  • 1300 42 kW · 57 CV1970–1972KL 13 H
  • 1500 43 kW · 58 CV1962–1966KA
  • 1500 GT 56 kW · 76 CV1962–1966KA
  • 1600 47 kW · 64 CV1967–1969KL 16 L
  • 1600 45 kW · 62 CV1970–1972OHV KL 16 L
  • 1600 50 kW · 68 CV1970–1972OHV KL 16 L
  • 1600 GT 60 kW · 82 CV1967–1970KL 16 G
ESCORT I (AFH, ATH)8
  • 1100 32 kW · 45 CV1968–1974G1
  • 1100 29 kW · 40 CV1968–1971KL11
  • 1100 33 kW · 45 CV1968–1971G1
  • 1100 35 kW · 48 CV1970–1976G2
  • 1300 42 kW · 57 CV1970–1976J2
  • 1300 53 kW · 72 CV1970–1976J3D
  • 1300 40 kW · 54 CV1973–1976J1F
  • 1300 GT 47 kW · 64 CV1968–1971KL 13 H
ESCORT II (ATH)7
  • 1.1 32 kW · 45 CV1974–1980G1
  • 1.1 35 kW · 48 CV1974–1980G2
  • 1.1 34 kW · 46 CV1975–1980G1
  • 1.3 40 kW · 54 CV1974–1980J1F
  • 1.3 42 kW · 57 CV1974–1980J2
  • 1.3 51 kW · 70 CV1974–1980J3
  • 1.3 44 kW · 60 CV1979–1980J2
ESCORT III (GAA)2
ESCORT III Cabriolet (ALD)1
  • 1.6 i 77 kW · 105 CV1983–1985LR1, LRA
ESCORT III Express (AVA)3
  • 1.1 37 kW · 50 CV1981–1986GMA, GLB
  • 1.6 61 kW · 84 CV1981–1986HL16L
  • 1.6 D 40 kW · 54 CV1984–1986LTA
ESCORT III Turnier (AWA)3
  • 1.1 40 kW · 54 CV1980–1983GMA, GLB
  • 1.6 58 kW · 79 CV1980–1985LP1, LPA
  • 1.6 D 40 kW · 54 CV1984–1985LTA
ESCORT II Turnier5
  • 1.1 32 kW · 44 CV1975–1980G1
  • 1.1 35 kW · 48 CV1975–1980G2
  • 1.3 42 kW · 57 CV1975–1980J2
  • 1.3 (BADR) 40 kW · 54 CV1976–1981KL13
  • 1.3 (CADR) 40 kW · 54 CV1975–1979KL 13 H
ESCORT I Turnier (ADH)4
  • 1100 29 kW · 40 CV1968–1971KL11
  • 1100 35 kW · 48 CV1970–1976G2
  • 1100 32 kW · 44 CV1970–1976G1
  • 1300 42 kW · 57 CV1970–1976J2
ESCORT IV (GAF, AWF, ABFT)5
  • 1.6 58 kW · 79 CV1986–1988LP2
  • 1.6 65 kW · 88 CV1989–1990LUG
  • 1.6 XR3i 77 kW · 105 CV1986–1989LR2, LRB
  • 1.6 i 66 kW · 90 CV1986–1990L4B, LUC
  • 1.6 i 75 kW · 102 CV1989–1990LJB
ESCORT IV Cabriolet (ALF)4
  • 1.6 58 kW · 79 CV1986–1987LP2, LPA
  • 1.6 XR3i 77 kW · 105 CV1986–1990LR2, LRB
  • 1.6 i 66 kW · 90 CV1986–1990L4B, LUC
  • 1.6 i 75 kW · 102 CV1989–1990LJB
ESCORT IV Express (AVF)6
  • 1.3 44 kW · 60 CV1986–1990JLA, JLB, JBB
  • 1.3 46 kW · 63 CV1988–1990JBA
  • 1.4 i 54 kW · 73 CV1986–1990FUC, F6B, F6D
  • 1.6 60 kW · 81 CV1986–1990LUC
  • 1.6 D 40 kW · 54 CV1986–1990LTC, LTA
  • 1.8 D 44 kW · 60 CV1988–1990RTA, RTB
ESCORT IV Turnier (AWF, AVF)5
  • 1.3 44 kW · 60 CV1986–1990JLA, JLB, JBB
  • 1.6 58 kW · 79 CV1986–1990LP2
  • 1.6 D 40 kW · 54 CV1986–1989LTC
  • 1.6 i 66 kW · 90 CV1986–1990L4B, LUC
  • 1.8 D 44 kW · 60 CV1989–1990RTA, RTB
GT1
  • GT 56 kW · 76 CV1962–1966
Lotus1
  • Lotus 78 kW · 106 CV1962–1970DL16LC
ORION I (AFD)1
  • 1.6 i 77 kW · 105 CV1983–1986LR1, LRA
ORION II (AFF)9
  • 1.4 55 kW · 75 CV1985–1990FUA
  • 1.4 52 kW · 72 CV1986–1990FUAA
  • 1.4 54 kW · 73 CV1986–1990FUC
  • 1.4 Cat 54 kW · 73 CV1987–1990F6B, F6D
  • 1.6 66 kW · 90 CV1985–1990LUC
  • 1.6 65 kW · 88 CV1986–1990LUG
  • 1.6 i 77 kW · 105 CV1986–1990LRB
  • 1.6 i 75 kW · 102 CV1986–1990LJB
  • 1.6 i Cat 66 kW · 90 CV1986–1990L4B
SIERRA I Hatchback (GBC)4
  • 1.3 44 kW · 60 CV1982–1986JCT
  • 1.6 55 kW · 75 CV1982–1986LCS, LCT, LSD
  • 1.6 51 kW · 69 CV1982–1987LSDA
  • 1.6 58 kW · 79 CV1984–1986LSD
SIERRA II (GBG, GB4)3
  • 1.6 55 kW · 75 CV1987–1993LSE
  • 1.6 53 kW · 72 CV1988–1993LSF
  • 1.6 i 59 kW · 80 CV1989–1993L6B
SIERRA II Hatchback (GBC, GBG)1
  • 1.6 i 59 kW · 80 CV1989–1993L6B
TAUNUS (GBFK)3
  • 1300 40 kW · 54 CV1970–1976JA
  • 1600 53 kW · 72 CV1970–1976LCJ
  • 1600 50 kW · 68 CV1974–1975LAD
TAUNUS (GBTK)3
  • 1300 40 kW · 55 CV1970–1975JAC
  • 1600 53 kW · 72 CV1970–1975LCJ
  • 1600 50 kW · 68 CV1974–1975LAD
TAUNUS (GBTS, GBFS, CBTS)4
  • 1.3 40 kW · 55 CV1975–1979JAC
  • 1.3 41 kW · 56 CV1976–1979JAC
  • 1.6 50 kW · 68 CV1975–1979LAD
  • 1.6 53 kW · 72 CV1975–1979LCJ
TAUNUS III Turnier (GBNS)2
  • 1.6 51 kW · 69 CV1979–1982LAR
  • 1.6 54 kW · 73 CV1979–1982LCR
TAUNUS Turnier (GBNK)2
  • 1600 53 kW · 72 CV1970–1976LCJ
  • 1600 50 kW · 68 CV1974–1975LAD
TAUNUS Turnier (GBNS)5
  • 1.3 43 kW · 58 CV1975–1979JCC
  • 1.3 41 kW · 56 CV1976–1979JAC
  • 1.6 50 kW · 68 CV1975–1979LAD
  • 1.6 53 kW · 72 CV1975–1979LCJ
  • 1.6 66 kW · 90 CV1976–1979LE
TAUNUS V (GBS, GBNS)2
  • 1.6 51 kW · 69 CV1979–1982LAR
  • 1.6 54 kW · 73 CV1979–1982LCJ, LCR
