TRW

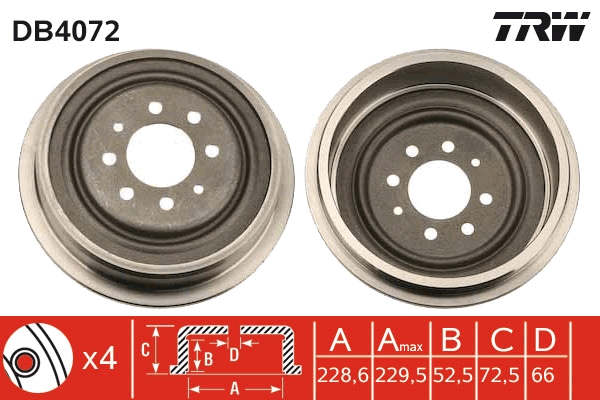

Tamburo freno

Codice DB4072 · EAN 3322937075454

68,80 €

IVA inclusa

Secondo il catalogo non è compatibile con la tua SEAT MARBELLA (28A) 0.9. Vedi i ricambi per la tua auto · auto compatibili

Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.

Caratteristiche

Altezza Totale Tamb. Freno [Mm]: 71
Diametro Centraggio [Mm]: 66
Diam. Tamburo Freno Esterno [Mm]: 241
Dimensioni Filettatura 1: 12,75
Alesaggio-Ø 2 [Mm]: 8,75
Diametro Tamburo: 228,6
Misura Mass. Scorrim. Tamburo Freno [Mm]: 229,5
Altezza Interna Tamb. Freno [Mm]: 53
N° Fori: 4
Foro Interno-Ø [Mm]: 100

Codici originali

Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.

Auto compatibili

108 versioni di 24 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.

Cerca la tua auto

RENAULT108 versioni

1.4 i (JA0E)1

1.4 i (JA0E) 55 kW · 75 CV1997–1999E7J 764

1.6 e (JA0F)1

1.6 e (JA0F) 66 kW · 90 CV1996–1999K7M 702, K7M 703

1.6 i (JA0L)1

1.6 i (JA0L) 55 kW · 75 CV1997–1999K7M 720

18 (134_)2

2.0 (1343) 77 kW · 105 CV1982–1986J6R 716
2.1 TD 65 kW · 88 CV1981–1986J8S 712

18 Furgone/familiare2

1.4 47 kW · 64 CV1979–1986847 722, 847 720
2.1 Diesel 49 kW · 67 CV1981–1986852 710, J8S 711

18 Variable (135_)8

1.4 (1350) 47 kW · 64 CV1979–1986847 722, 847 720
1.6 (1351) 54 kW · 73 CV1982–1986841 717, A2M 723
1.6 4x4 58 kW · 79 CV1979–1981841 725
1.6 4x4 54 kW · 73 CV1983–1986841 717, A2M 723
2.0 (1353) 77 kW · 105 CV1981–1986J6R 716
2.0 4x4 76 kW · 104 CV1983–1986J6R 714, J6R 716
2.1 Diesel 53 kW · 72 CV1979–1986J8S 711
2.1 Diesel (1354) 49 kW · 67 CV1980–1986852 710, J8S 711

21 (B48_)6

2.0 86 kW · 117 CV1989–1992J7R 750, J7R 751
2.0 (B48C) 88 kW · 120 CV1989–1993J7R 746, J7R 747
2.1 Turbo-D (B486, B488, B48V) 65 kW · 88 CV1989–1994J8S 788, J8S 714, J8S 786
2.2 81 kW · 110 CV1989–1993J7T 755
2.2 (B48K) 79 kW · 107 CV1989–1994J7T 754, J7T 755
2.2 4x4 (B48K) 79 kW · 107 CV1990–1994J7T 754, J7T 755

21 Familiare (K48_)17

1.7 (K/S481) 55 kW · 75 CV1986–1993F2N 712
1.7 (K/S482) 65 kW · 88 CV1986–1988F2N 710
1.7 (K48E) 66 kW · 90 CV1989–1993F3N 722, F3N 723
1.7 Cat (K48F) 54 kW · 73 CV1988–1993F3N 726
1.9 D 47 kW · 64 CV1986–1994F8Q 710
2.0 86 kW · 117 CV1989–1992J7R 750, J7R 751
2.0 75 kW · 102 CV1991–1993J6R 792, J6R 758, J6R 759
2.0 (K483) 85 kW · 116 CV1986–1988J7R 750, J7R 751
2.0 (K48C) 88 kW · 120 CV1986–1993J7R 746, J7R 747
2.0 (K48R) 99 kW · 135 CV1990–1994J7R 740
2.0 4x4 88 kW · 120 CV1989–1993J7R 746, J7R 747
2.1 D (K/S486) 48 kW · 65 CV1986–1990J8S 704
2.1 D (K/S48V, K/S48O) 53 kW · 72 CV1989–1992J8S 740, J8S 600
2.1 D (K480) 51 kW · 69 CV1992–1995J8S 784
2.1 D 4x4 (K486) 48 kW · 65 CV1988–1992J8S 704
2.1 Turbo-D (K48A, K48W, K487, K488) 65 kW · 88 CV1986–1993J8S 788, J8S 714, J8S 786
2.2 (K48K) 79 kW · 108 CV1986–1993J7T 754, J7T 755

21 Furgone/familiare (S48_)3

1.7 65 kW · 88 CV1986–1995F2N 710
1.9 D 47 kW · 64 CV1986–1994F8Q 710
2.1 D 49 kW · 67 CV1986–1994J8S 704

21 Tre volumi (L48_)10

2.0 86 kW · 117 CV1986–1989J7R 750, J7R 751
2.0 78 kW · 106 CV1991–1993J6R 758
2.0 (L483) 85 kW · 116 CV1986–1988J7R 750, J7R 751
2.0 (L489) 75 kW · 102 CV1986–1993J6R 792, J6R 793, J6R 758, J6R 759
2.0 (L489) 76 kW · 103 CV1988–1989J6R 792, J6R 793, J6R 758, J6R 759
2.0 (L48C) 88 kW · 120 CV1986–1993J7R 746, J7R 747
2.1 Turbo-D (L48A, L48W, L487, L488) 65 kW · 88 CV1986–1994J8S 788, J8S 714, J8S 786
2.2 81 kW · 110 CV1986–1989J7T 755
2.2 (L48K) 79 kW · 107 CV1986–1994J7T 754, J7T 755
2.2 4x4 (L48K) 79 kW · 107 CV1990–1994J7T 754, J7T 755

25 (B29_)9

2.0 88 kW · 120 CV1987–1993J7R 722, J7R 723
2.0 (B297) 74 kW · 101 CV1984–1992J6R 763, J6R 706, J6R 760, J6R 707, J6R 762
2.1 Diesel (B296) 46 kW · 63 CV1984–1989J8S 706
2.1 Diesel (B296) 51 kW · 69 CV1989–1992J8S 736
2.1 Turbo-D FWD (B290, B29W) 63 kW · 86 CV1984–1992J8S 708, J8S 738
2.2 (B29) 76 kW · 103 CV1985–1989J7T 732, J7T 733, J7T 708
2.2 (B29B) 79 kW · 108 CV1986–1992J7T 732, J7T 733, J7T 708
2.2 (B29E) 89 kW · 121 CV1984–1989J7T 706, J7T 707, J7T 714, J7T 715
2.2 (B29E) 91 kW · 124 CV1984–1989J7T 730, J7T 731

30 (127_)1

2.1 Turbo-D (1270) 63 kW · 86 CV1982–1986J8S 702

CLIO I (B/C57_, 5/357_)1

Electric 21 kW · 30 CV1996–19982DB 701

ESPACE I (J11_)5

2.0 (J/S112) 80 kW · 109 CV1984–1990J6R 234, J6R 236
2.0 (J/S112) 74 kW · 101 CV1988–1990J6R 734
2.0 i (J116) 87 kW · 118 CV1989–1990J7R 760
2.1 TD (J/S115) 65 kW · 88 CV1984–1990J8S 240, J8S 774, J8S 776
2.2 (J117) 79 kW · 108 CV1986–1990J7T 770

ESPACE II (J/S63_)4

2.0 (J636) 76 kW · 103 CV1991–1996J7R 768
2.1 TD (J633, J634, J/S635, J/S63D) 65 kW · 88 CV1991–1996J8S 772, J8S 776, J8S 778, J8S 610
2.1 TD (J63E) 66 kW · 90 CV1994–1996J8S 612
2.2 (J/S637, J63G) 79 kW · 108 CV1991–1996J7T 772, J7T 776, J7T 773

EXPRESS Cassone/Limousine spaziosa1

1.9 D 47 kW · 64 CV1995–1998

EXPRESS Pick-up2

1.9 D 40 kW · 54 CV1995–1997F8Q 640
1.9 D 47 kW · 64 CV1995–1999F8Q 776, F8Q 724

FUEGO (136_)3

1.6 TS/GTS (1362) 71 kW · 97 CV1980–1985A6M 725, A6M 726, 843 723, 843 724
2.0 TX/GTX (1363) 81 kW · 110 CV1980–1985J6R 710, J6R 712, J6R 713, 829 710, J6R 715, J6R 726
2.1 TD 65 kW · 88 CV1982–1985J8S 712

KANGOO (KC0/1_)4

1.6 (KC00) 66 kW · 90 CV1999–2001K7M 746
1.6 16V 70 kW · 95 CV2001–2018K4M 750, K4M 752, K4M 753, K4M 706, K4M 730
1.6 16V bivalent 60 kW · 82 CV2005–oggiK4M 850
D 65 1.9 (KC0E, KC02, KC0J, KC0N) 47 kW · 64 CV1997–2001F8Q 632, F8Q 630

KANGOO Express (FC0/1_)4

1.6 66 kW · 90 CV1999–2001K7M 746
1.6 16V 70 kW · 95 CV2001–2018K4M 752, K4M 706
1.6 16V bivalent 60 kW · 82 CV2005–oggiK4M 850
D 65 1.9 (FC0E, FC02, FC0J, FC0N) 47 kW · 64 CV1997–oggiF8Q 632, F8Q 630

LAGUNA I Grandtour (K56_)5

1.8 (K56S/T/0) 66 kW · 90 CV1995–2001F3P 670, F3P 678
1.8 (K56Z) 69 kW · 94 CV1995–2001F3P 720, F3P 678, F3P 724
1.9 dTi (K56J) 72 kW · 98 CV1997–2001F9Q 717, F9Q 710, F9Q 716
2.0 84 kW · 114 CV1998–2001F3R 728, F3R 768
2.2 D (K56F/2, S56F) 61 kW · 83 CV1995–2001G8T 706, G8T 752, G8T 790, G8T 794

RAPID Cassone/Limousine spaziosa (F40_, G40_)14

1.2 40 kW · 54 CV1991–1993C1G 726
1.2 (F406, G40A) 40 kW · 55 CV1991–1998C3G 712, C3G 710
1.4 54 kW · 73 CV1991–1993E7J 724
1.4 59 kW · 80 CV1995–1997E7J 773
1.4 (F402) 43 kW · 58 CV1985–1991C1J 768, C1J 780
1.4 (F40D) 58 kW · 79 CV1994–1998E7J 728
1.4 (F40M) 44 kW · 60 CV1986–1991C2J 784
1.4 (F40U, F40V) 55 kW · 75 CV1991–1998E7J 726, E7J 720, E7J 724, E7J 773
1.4 (F40Y, F40A, F40V) 43 kW · 58 CV1991–1997E6J 734, E6J 738, E7J 720
1.4 Cat (F407) 43 kW · 58 CV1988–1998C3J 702, C3J 700, C3J 760, C3J 762
1.4 RN 44 kW · 60 CV1991–1993E6J 734
1.6 D (F404) 40 kW · 55 CV1986–1998F8M 720, F8M 730, F8M 736, F8M 760
1.9 D (F40P, F40N, F40E) 47 kW · 64 CV1991–1998F8Q 774, F8Q 776, F8Q 646, F8Q 722, F8Q 724
1.9 D (F40R) 40 kW · 54 CV1994–1998F8Q 682, F8Q 648, F8Q 640

SAFRANE I (B54_)3

2.0 (B540) 77 kW · 105 CV1992–1996J7R 732, J7R 733
2.1 dT (B546) 65 kW · 88 CV1993–1996J8S 760
2.2 (B541) 79 kW · 107 CV1992–1996J7T 762

THALIA I (LB_)1

1.6 66 kW · 90 CV1998–2008K7M 746
