TRW

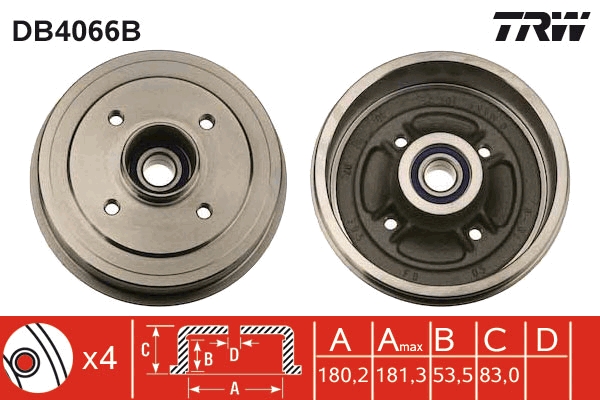

Tamburo freno
Codice DB4066B · EAN 3322937134502
106,82 €
IVA inclusa
Secondo il catalogo non è compatibile con la tua ISUZU GEMINI (JT) 1.5.
Vedi i ricambi per la tua auto · auto compatibili
Al momento non disponibile. Scrivici: verifichiamo i tempi o ti proponiamo un equivalente.
Caratteristiche
- Altezza Totale Tamb. Freno [Mm]
- 83
- Diametro Centraggio [Mm]
- 52
- Diam. Tamburo Freno Esterno [Mm]
- 191
- Dimensioni Filettatura 1
- M12 X 1,5
- Dimensioni Filettatura 2
- M12 X 1,5
- Diametro Tamburo
- 180,2
- Misura Mass. Scorrim. Tamburo Freno [Mm]
- 181,3
- Altezza Interna Tamb. Freno [Mm]
- 54
- N° Fori
- 4
- Foro Interno-Ø [Mm]
- 100
- Articolo Complementare/Info Integrativa 2
- CON CUSCINETTO RUOTA INTEGRATOSENZA ANELLO SENSORE ABS
Codici originali
Questo ricambio sostituisce i codici originali delle case auto. Clicca un codice per vedere tutti gli equivalenti in vendita.
Nessun codice corrisponde.
Auto compatibili
133 versioni di 17 modelli, secondo il catalogo del produttore. Indica targa o telaio nell'ordine: verifichiamo prima di spedire.
5 (122_)3
- 1.0 (1222, 1392) 32 kW · 44 CV1972–1985689 710
- 1.1 (1227, 1397) 33 kW · 45 CV1980–1985C1E 726, 688 713
- 1.4 (1229, 1399) 46 kW · 63 CV1982–1985C2J 713, 847 725
9 (L42_)14
- 1.1 (L421) 35 kW · 48 CV1981–1987C1E 720, C1E 715
- 1.2 (L42S) 40 kW · 54 CV1985–1988C1G 700, C1G 710
- 1.4 (L422, L42C) 44 kW · 60 CV1981–1988C1J 796, C1J 715, C2J 730, C1J 792
- 1.4 (L423) 53 kW · 72 CV1981–1985C2J 717, C2J 755
- 1.4 (L423, L42R) 49 kW · 67 CV1985–1988C2J 768, C2J 720, C2J 766, C2J 767
- 1.4 Automatik (L423) 50 kW · 68 CV1981–1985C2J 718, C2J 757
- 1.4 Turbo 85 kW · 116 CV1986–1989C1J 764
- 1.4 Turbo (L425) 77 kW · 105 CV1984–1986C1J 760, C1J 764
- 1.6 D (L424) 40 kW · 55 CV1982–1988F8M 700, F8M 720, F8M 730
- 1.7 (L426) 59 kW · 80 CV1984–1989F2N 700, F2N 704
- 1.7 (L42E) 69 kW · 94 CV1987–1988F3N 708
- 1.7 (L42F) 54 kW · 73 CV1986–1988F3N 718
- 1.7 (L42L) 55 kW · 75 CV1986–1988F2N 730
- 1.7 (L42N) 65 kW · 88 CV1986–1988F2N 708, F2N 710, F2N 798
11 (B/C37_)17
- 1.1 (B/C371) 35 kW · 48 CV1983–1986C1E 720, C1E 715
- 1.2 (B37S, C375) 40 kW · 55 CV1984–1988C1G 700, C1G 710
- 1.4 43 kW · 58 CV1986–1987C2J 720
- 1.4 (B/C372, B/C37C) 44 kW · 60 CV1983–1988C1J 715, C2J 730
- 1.4 (B/C373) 50 kW · 68 CV1983–1985C2J 718, C2J 757
- 1.4 (B/C373) 53 kW · 72 CV1983–1985C2J 717, C2J 755
- 1.4 (B/C373, B/C37R) 49 kW · 67 CV1983–1988C2J 768, C2J 720, C2J 766, C2J 767
- 1.4 Turbo 87 kW · 118 CV1984–1986C1J 764
- 1.4 Turbo (B/C375) 77 kW · 105 CV1984–1986C1J 760, C1J 764
- 1.4 Turbo (B/C375) 85 kW · 115 CV1986–1988C1J 770, C1J 782
- 1.6 D (B/C374) 40 kW · 55 CV1983–1988F8M 700, F8M 720, F8M 730
- 1.7 (B/C376) 59 kW · 80 CV1983–1987F2N 700, F2N 704
- 1.7 (B/C37D) 64 kW · 87 CV1987–1988F2N 732, F2N 742
- 1.7 (B/C37E) 69 kW · 94 CV1987–1988F3N 708
- 1.7 (B/C37F) 55 kW · 75 CV1984–1988F3N 718
- 1.7 (B/C37L) 54 kW · 73 CV1986–1988F2N 730
- 1.7 (B37N, C73N) 65 kW · 88 CV1986–1988F2N 708, F2N 710, F2N 798
11 Furgone/hatchback (S37_)5
- 1.1 (S371) 35 kW · 48 CV1983–1986C1E 715, C1E 720
- 1.2 (S37S) 40 kW · 55 CV1984–1988C1G 700, C1G 710
- 1.4 (S372) 44 kW · 60 CV1983–1986C1J 715, C2J 730
- 1.4 (S373) 50 kW · 68 CV1983–1986C2J 768
- 1.6 D (S374) 40 kW · 55 CV1983–1988F8M 700, F8M 720, F8M 730
19 I (B/C53_)12
- 1.2 40 kW · 54 CV1988–1992C1G 730
- 1.4 59 kW · 80 CV1988–1992E6J 701, E6J 700
- 1.4 (B/C53P) 43 kW · 58 CV1989–1993C2J 772
- 1.7 68 kW · 92 CV1988–1992F2N 720
- 1.7 69 kW · 94 CV1988–1992F2N 721, F2N 722
- 1.7 79 kW · 107 CV1989–1992F3N 746
- 1.7 (B/C53B) 54 kW · 73 CV1988–1992F3N 740, F3N 741
- 1.7 (B/C53C) 66 kW · 90 CV1988–1992F3N 742, F3N 743
- 1.8 67 kW · 91 CV1992–1994F3P 765
- 1.9 D (B/C534, B/C53J) 47 kW · 64 CV1988–1992F8Q 706, F8Q 742
- 1.9 DT 68 kW · 92 CV1990–1992F8Q 610
- 1.9 DT 66 kW · 90 CV1990–1992F8Q 740
19 I Chamade (L53_)9
- 1.2 40 kW · 54 CV1988–1992C1G 730
- 1.4 57 kW · 78 CV1988–1990E6J 701, E6J 700
- 1.4 58 kW · 79 CV1989–1990E6J 700
- 1.4 55 kW · 75 CV1990–1992E7J 700
- 1.4 (L532, L53P) 43 kW · 58 CV1988–1992C2J 772, C3J 710
- 1.7 (L53C) 66 kW · 90 CV1988–1992F3N 742, F3N 743
- 1.9 D (L534, L53J) 47 kW · 64 CV1989–1992F8Q 706, F8Q 742
- 1.9 DT 66 kW · 90 CV1990–1992F8Q 740
- 1.9 TD (L53K) 68 kW · 92 CV1990–1992F8Q 740
19 I Furgone/hatchback (S53_)3
19 II (B/C53_)14
- 1.2 40 kW · 54 CV1992–1995C1G 730
- 1.2 44 kW · 60 CV1992–1994E7F 730
- 1.4 59 kW · 80 CV1992–1995E7J 706, E6J 700
- 1.4 57 kW · 78 CV1993–1998E6J 700
- 1.4 (B/C535) 55 kW · 75 CV1992–1995E7J 742
- 1.7 79 kW · 107 CV1992–1994F3N 746
- 1.7 (B/C53B) 54 kW · 73 CV1992–1995F3N 740, F3N 741
- 1.7 (B/C53C) 66 kW · 90 CV1992–1995F3N 743
- 1.8 (5/353A) 66 kW · 90 CV1992–1995F3P 706, F3P 760
- 1.8 (5/353F, B/C538) 79 kW · 107 CV1994–1995F3P 765, F3P 682
- 1.8 (B/C538) 81 kW · 110 CV1992–1994F3P 700
- 1.8 (B/C53Y) 65 kW · 88 CV1992–1995F3P 706, F3P 707, F3P 708, F3P 760
- 1.8 16V (B/C53D) 99 kW · 135 CV1992–1995F7P 704
- 1.9 D (B/C53J) 47 kW · 64 CV1992–1995F8Q 742
19 II Cabriolet (D53_, 853_)2
- 1.7 (D53C) 66 kW · 90 CV1992–1993F3N 742, F3N 743
- 1.8 (853A) 66 kW · 90 CV1993–1996F3P 706, F3P 760
19 II Chamade (L53_)10
- 1.2 44 kW · 60 CV1992–1994E7F 730
- 1.4 44 kW · 60 CV1992–1994C2J 772, C1J 742, C3J 710
- 1.4 57 kW · 78 CV1994–1995E6J 700
- 1.4 59 kW · 80 CV1994–1995E7J 706
- 1.4 (L535) 55 kW · 75 CV1993–1995E7J 742
- 1.7 55 kW · 75 CV1992–1995F3N 740, F3N 741
- 1.8 67 kW · 91 CV1992–1994F3P 765
- 1.8 (453A/F) 66 kW · 90 CV1992–1995F3P 706, F3P 760
- 1.8 (L538) 81 kW · 110 CV1992–1994F3P 700
- 1.9 D (L53J) 47 kW · 64 CV1992–1997F8Q 742
19 II Furgone/hatchback (S53_)3
CLIO I (B/C57_, 5/357_)17
- 1.1 34 kW · 46 CV1991–1998C1E 700
- 1.1 36 kW · 49 CV1992–1992C1E 700
- 1.2 (5/357Y, 5/357K) 43 kW · 58 CV1996–1998D7F 730
- 1.2 (5/357Y, 5/357K) 40 kW · 54 CV1996–1998D7F 730
- 1.2 (B/C/S572) 44 kW · 60 CV1990–1996E5F 710
- 1.2 (B/C/S577) 40 kW · 54 CV1996–1996C3G 720
- 1.2 (B/C/S57A, B/C57S, 5/357F, 5/357J, 5/357L, 5/357R) 43 kW · 58 CV1990–1998E7F 700, E7F 708, E7F 750
- 1.2 (B/C57R, B575, B57A) 40 kW · 54 CV1991–1996E7F 700, E7F 704, E7F 706, E7F 708, E7F 750
- 1.4 57 kW · 78 CV1990–1998E6J 712, E6J 713, E6J 760
- 1.4 59 kW · 80 CV1991–1998E7J 710, E7J 711
- 1.4 (B/C57T, B/C57Y) 58 kW · 79 CV1991–1998E7J 718, E7J 719, E7J 754, E7J 601
- 1.7 (B/C574) 68 kW · 92 CV1991–1993F2N 770
- 1.8 70 kW · 95 CV1991–1998F3P 710
- 1.8 (B/C57C, B/C57U) 65 kW · 88 CV1991–1998F3P 710, F3P 714
- 1.8 (B/C57C, C579, B/C57U) 66 kW · 90 CV1994–1996F3P 710, F3P 712, F3P 714
- 1.9 D 48 kW · 65 CV1996–1998F8Q 632, F8Q 696, F8Q 676, F8Q 714
- 1.9 D (B/C/S576, B/C/S57L) 47 kW · 64 CV1991–1998F8Q 730, F8Q 732
CLIO I Furgone/hatchback (S57_)5
SUPER 5 (B/C40_)14
- 1.0 (B/C/400) 30 kW · 41 CV1984–1988C1C 700
- 1.1 35 kW · 48 CV1989–1990C1E 750
- 1.1 (B/C/401) 34 kW · 46 CV1984–1988C1E 750, C1E 752, C1E 754
- 1.1 (B/C/401, B/C40H) 33 kW · 45 CV1986–1995C1E 750, C1E 752, C1E 756, C1E 760
- 1.2 (B/C40F) 40 kW · 55 CV1987–1990C1G 702, C1G 720, C1G 722
- 1.4 (B/C402) 43 kW · 59 CV1984–1988C1J 768, C1J 780
- 1.4 (B/C403) 52 kW · 71 CV1984–1989C2J 798, C2J 700, C2J 780, C2J 781, C2J 788, C2J 789
- 1.4 (B/C40J) 49 kW · 67 CV1987–1989C2J 782
- 1.4 (B/C40M) 44 kW · 60 CV1987–1990C2J 784
- 1.4 Cat (B/C/407) 43 kW · 58 CV1985–1996C3J 702, C3J 700, C3J 760
- 1.6 D 40 kW · 54 CV1985–1990F8M 730
- 1.6 D (B/C/404) 40 kW · 55 CV1985–1996F8M 720, F8M 730
- 1.7 (B/C408) 54 kW · 73 CV1986–1995F3N 716, F3N 717
- 1.7 (B/C40K, B/C40G) 64 kW · 87 CV1987–1995F2N 740, F2N 742
SUPER 5 Furgone/hatchback (S40_)3
- 1.0 (S400) 30 kW · 41 CV1984–1988C1C 700
- 1.1 (S401) 34 kW · 46 CV1984–1996C1E 750, C1E 752, C1E 754
- 1.6 D (S404) 40 kW · 54 CV1984–1996F8M 720
TWINGO I (C06_)1
- 1.2 (C063, C064) 40 kW · 55 CV1993–1996C3G 700, C3G 702
TWINGO I Furgone/hatchback (S06_)1
- 1.2 (S063, S064) 40 kW · 55 CV1993–1996C3G 700, C3G 702
Nessuna auto corrisponde: prova con il solo modello, o indica targa o telaio nell'ordine.
